Product Model

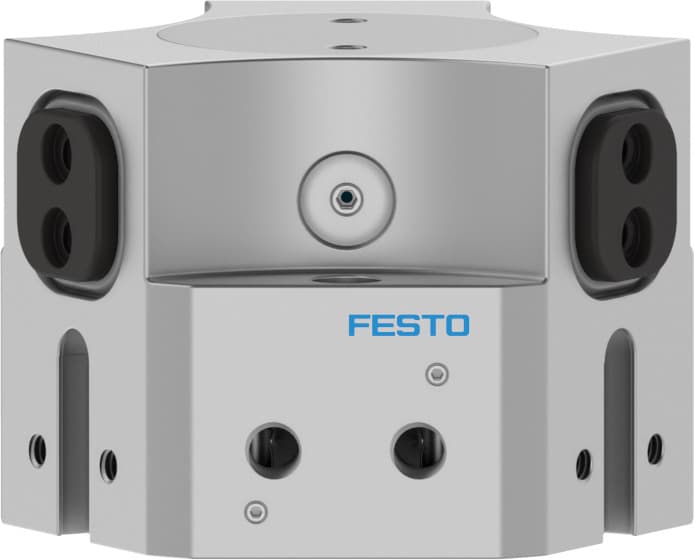

hgdd-35-a
Selling Points
- 1The Festo HGDD-35-A three-point gripper offers a stroke of 4 mm and a maximum interchangeability of ≤0.2 mm, ensuring high precision in gripping operations.
- 2With a maximum force on gripper jaws of 300 N and a mass moment of inertia of 1.37 kg/cm², this gripper is built for robust performance and durability.
- 3The gripper allows for arbitrary installation positions and can be mounted via through-hole and dowel pin or female thread and dowel pin, providing flexibility in setup.
- 4Equipped with a proximity switch for position detection, the HGDD-35-A ensures accurate control and reliable operation.
- 5Made from materials like hardened steel and high-alloy stainless steel, this gripper offers moderate corrosion resistance, making it suitable for various industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 35 | Stroke per gripper jaw | 4mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.1deg |
Max. gripper jaw backlash Sz | 0.05mm | Rotational symmetry | 0.2mm |
Pneumatic gripper repetition accuracy | 0.03mm | Number of gripper jaws | 3 |
Mounting position | Any | Mode of operation | Double-acting |
Gripper function | 3-point | Structural design | Inclined plane Positively driven motion sequence |
Position sensing | For proximity sensor | Symbol | 00991894 |
Gripping force per gripper jaw at 6 bar, opening | 122N | Gripping force per gripper jaw at 6 bar, closing | 112N |
Operating pressure | 3bar 8bar | Operating pressure for sealing air | 0bar 0.5bar |
Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 44ms |
Min. closing time at 6 bar | 52ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Degree of protection | IP65 |
Ambient temperature | 5°C 60°C | Mass moment of inertia | 1.01kgcm2 |
Maximum force on gripper jaw Fz, static | 300N | Maximum torque on gripper jaw, Mx static | 12Nm |
Maximum torque on gripper jaw, My static | 8Nm | Maximum torque on gripper jaw, Mz static | 8Nm |
Relubrication interval for guidance elements | 5MioCyc | Max. mass per external gripper finger | 57g |
Product weight | 309g | Type of mounting | Optionally: With through-hole and dowel pin With internal thread and dowel pin |
Sealing air pneumatic connection | M3 | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover cap material | High-alloy stainless steel |
Housing material | Wrought aluminum alloy, smooth-anodized | Gripper jaw material | Hardened steel |
Manufacturer ID | 1163037 |
Specifications may be subject to change without notice
