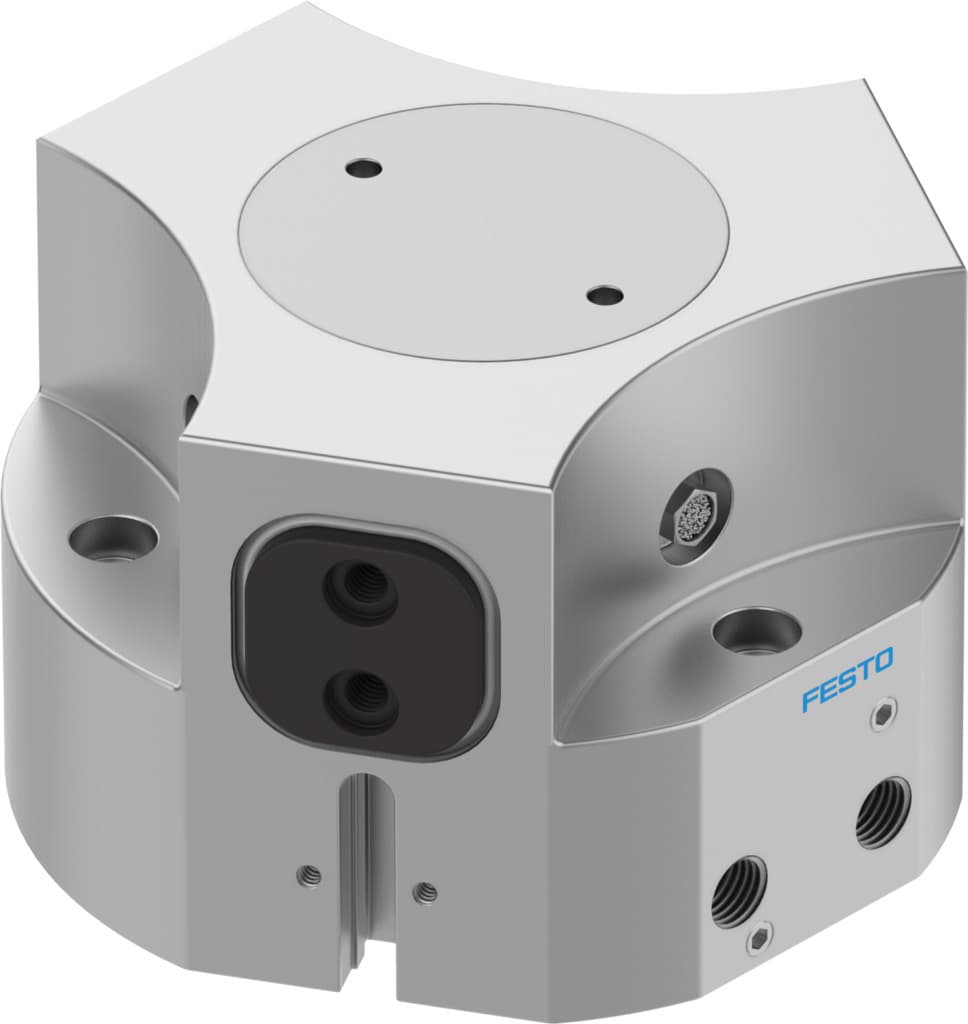

Product Model
hgdd-63-a
Selling Points
- 1High Precision and Accuracy: The Festo HGDD-63-A-G2 offers a stroke per gripper jaw of 10 mm and a maximum replacement accuracy of 0.2 mm, ensuring precise gripping and handling.
- 2Robust Design and Durability: Constructed with hardened steel for the gripper jaws and smooth-anodized wrought aluminum alloy for the housing, this gripper is built to withstand demanding industrial environments.
- 3Versatile Mounting Options: Available with through-hole and dowel pin or internal thread and dowel pin mounting options, the HGDD-63-A-G2 can be easily integrated into various systems.
- 4Efficient Operation: With a maximum operating frequency of 4 Hz and minimal opening and closing times of 135 ms and 68 ms respectively, this gripper ensures fast and efficient operation.
- 5Comprehensive Protection and Safety: Featuring an IP65 degree of protection and moderate corrosion resistance class (CRC) 2, the HGDD-63-A-G2 provides reliable performance in a variety of conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 63 | Stroke per gripper jaw | 10mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.1deg |
Max. gripper jaw backlash Sz | 0.05mm | Rotational symmetry | 0.2mm |
Pneumatic gripper repetition accuracy | 0.05mm | Number of gripper jaws | 3 |
Mounting position | Any | Mode of operation | Double-acting |
Gripper function | 3-point | Structural design | Inclined plane Positively driven motion sequence |
Position sensing | For proximity sensor | Symbol | 00991894 |
Gripping force per gripper jaw at 6 bar, opening | 582N | Gripping force per gripper jaw at 6 bar, closing | 553N |
Operating pressure | 3bar 8bar | Operating pressure for sealing air | 0bar 0.5bar |
Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 115ms |
Min. closing time at 6 bar | 145ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Degree of protection | IP65 |
Ambient temperature | 5°C 60°C | Mass moment of inertia | 29kgcm2 |
Maximum force on gripper jaw Fz, static | 2300N | Maximum torque on gripper jaw, Mx static | 70Nm |
Maximum torque on gripper jaw, My static | 45Nm | Maximum torque on gripper jaw, Mz static | 50Nm |
Relubrication interval for guidance elements | 5MioCyc | Max. mass per external gripper finger | 440g |
Product weight | 2175g | Type of mounting | Optionally: With through-hole and dowel pin With internal thread and dowel pin |
Sealing air pneumatic connection | M5 | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover cap material | High-alloy stainless steel |
Housing material | Wrought aluminum alloy, smooth-anodized | Gripper jaw material | Hardened steel |
Manufacturer ID | 1163046 |
Specifications may be subject to change without notice
