Product Model

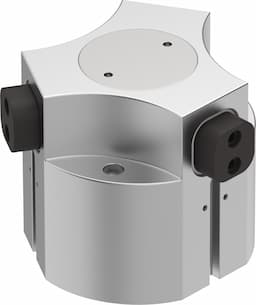

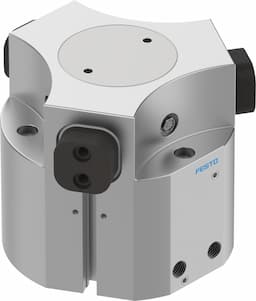

hgdd-63-a-g1
Selling Points
- 1High Precision Handling: The Festo HGDD-63-A-G1 offers a stroke per gripper jaw of 10 mm, ensuring precise handling and control in various industrial applications.
- 2Low Backlash and Angular Play: With a maximum gripper jaw angular play of ≤0.1 deg and backlash of ≤0.05 mm, this gripper ensures smooth and reliable operation.
- 3Robust Construction: Made from high-quality materials like hardened steel for the gripper jaw and wrought aluminum alloy for the housing, this gripper is built to last.
- 4Versatile Mounting Options: The HGDD-63-A-G1 can be mounted with through-hole and dowel pin or internal thread and dowel pin, providing flexibility in installation.
- 5Wide Operating Range: Operating pressures range from 4 to 8 bar, and it can operate at ambient temperatures between 5°C and 60°C, making it suitable for various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 63 | Stroke per gripper jaw | 10mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.1deg |
Max. gripper jaw backlash Sz | 0.05mm | Rotational symmetry | 0.2mm |
Pneumatic gripper repetition accuracy | 0.05mm | Number of gripper jaws | 3 |
Mounting position | Any | Mode of operation | Double-acting |
Gripper function | 3-point | Gripping force backup | On opening |
Structural design | Inclined plane Positively driven motion sequence | Position sensing | For proximity sensor |
Symbol | 00995947 | Operating pressure | 4bar 8bar |
Operating pressure for sealing air | 0bar 0.5bar | Max. operating frequency of pneumatic gripper | 4Hz |
Min. opening time at 6 bar | 48ms | Min. closing time at 6 bar | 190ms |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Degree of protection | IP65 | Ambient temperature | 5°C 60°C |
Mass moment of inertia | 45.05kgcm2 | Maximum force on gripper jaw Fz, static | 2300N |
Maximum torque on gripper jaw, Mx static | 70Nm | Maximum torque on gripper jaw, My static | 45Nm |
Maximum torque on gripper jaw, Mz static | 50Nm | Relubrication interval for guidance elements | 5MioCyc |
Max. mass per external gripper finger | 440g | Product weight | 2848g |
Type of mounting | Optionally: With through-hole and dowel pin With internal thread and dowel pin | Sealing air pneumatic connection | M5 |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover cap material | High-alloy stainless steel | Housing material | Wrought aluminum alloy, smooth-anodized |
Gripper jaw material | Hardened steel | Manufacturer ID | 1163047 |
Specifications may be subject to change without notice
