Product Model
hgdd-80-a
Selling Points

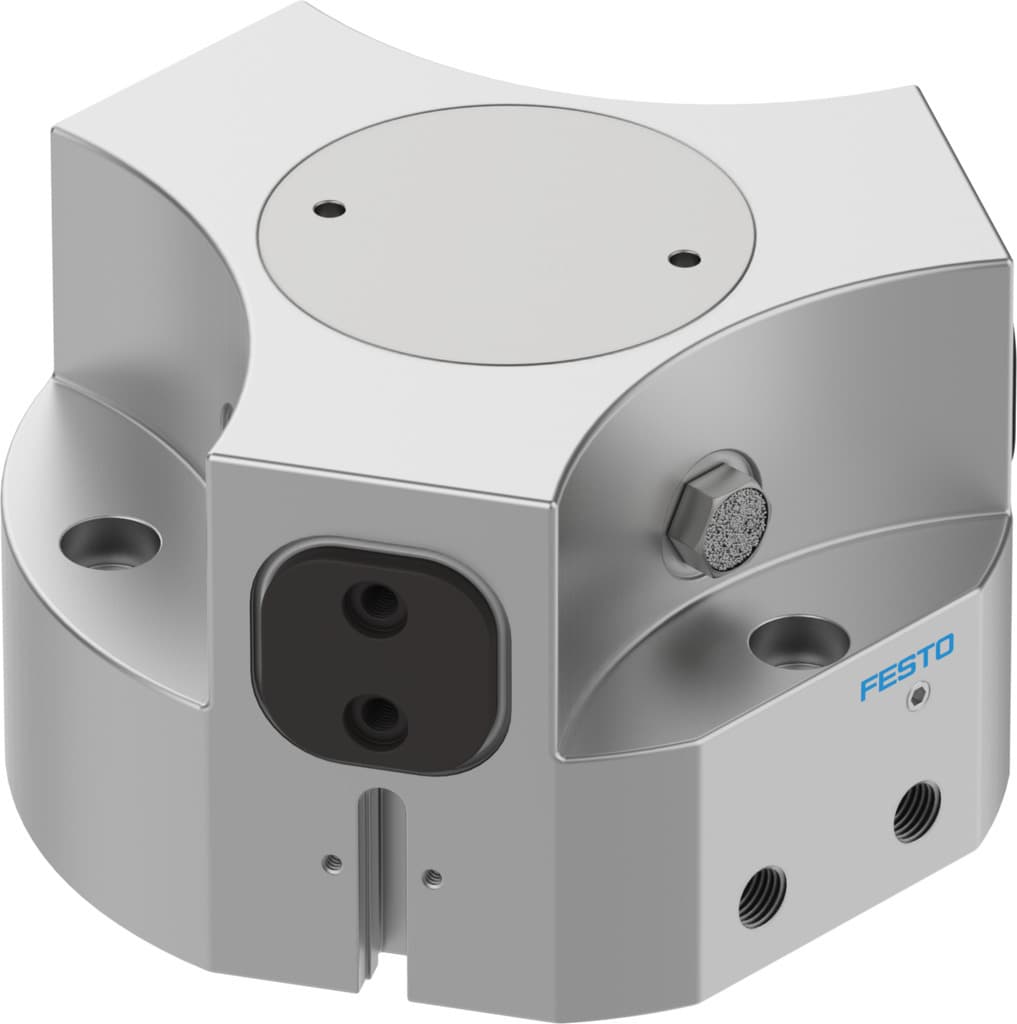

- 1The Festo HGDD-80-A three-point gripper offers a max. replacement accuracy of 0.2 mm and a repetition accuracy of 0.05 mm, ensuring precise gripping and reliable performance.
- 2Constructed with hardened steel gripper jaws and a smooth-anodized aluminum alloy housing, this gripper is designed for long-lasting use in demanding industrial environments.
- 3The HGDD-80-A can be mounted via through-hole and dowel pin or female thread and dowel pin, providing flexibility for various installation scenarios.
- 4With a double-acting mode of operation and a force pilot operated motion sequence, this gripper ensures efficient gripping and closing times of 107 ms and 152 ms, respectively, at 6 bar pressure.
- 5The gripper features an IP65 degree of protection and a moderate corrosion resistance class (CRC) of 2, making it suitable for a wide range of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 80 | Stroke per gripper jaw | 12mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.1deg |
Max. gripper jaw backlash Sz | 0.05mm | Rotational symmetry | 0.2mm |
Pneumatic gripper repetition accuracy | 0.05mm | Number of gripper jaws | 3 |
Mounting position | Any | Mode of operation | Double-acting |
Gripper function | 3-point | Structural design | Inclined plane Positively driven motion sequence |
Position sensing | For proximity sensor | Symbol | 00991894 |
Gripping force per gripper jaw at 6 bar, opening | 943N | Gripping force per gripper jaw at 6 bar, closing | 915N |
Operating pressure | 3bar 8bar | Operating pressure for sealing air | 0bar 0.5bar |
Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 152ms |
Min. closing time at 6 bar | 142ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Degree of protection | IP65 |
Ambient temperature | 5°C 60°C | Mass moment of inertia | 70.22kgcm2 |
Maximum force on gripper jaw Fz, static | 3600N | Maximum torque on gripper jaw, Mx static | 100Nm |
Maximum torque on gripper jaw, My static | 65Nm | Maximum torque on gripper jaw, Mz static | 75Nm |
Relubrication interval for guidance elements | 5MioCyc | Max. mass per external gripper finger | 790g |
Product weight | 3522g | Type of mounting | Optionally: With through-hole and dowel pin With internal thread and dowel pin |
Sealing air pneumatic connection | G1/8 | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover cap material | High-alloy stainless steel |
Housing material | Wrought aluminum alloy, smooth-anodized | Gripper jaw material | Hardened steel |
Manufacturer ID | 1163049 |
Specifications may be subject to change without notice
