Product Model

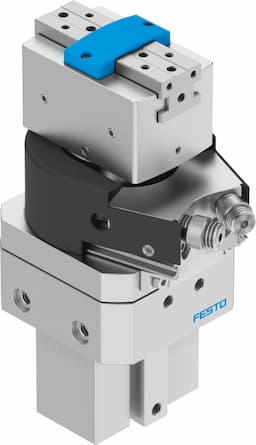

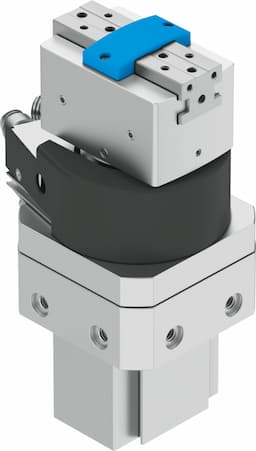

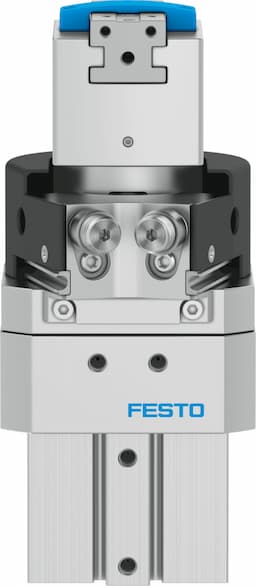

hgds-pp-20-p-a-b
Selling Points
- 1The HGDS-PP-20-P-A offers precise swiveling angles up to 210 degrees, ensuring accurate positioning in your industrial setup.
- 2Built with high-quality materials like wrought aluminum alloy and stainless steel, this unit provides long-lasting performance and resistance to corrosion.
- 3Equipped with flexible P cushioning, the HGDS-PP-20-P-A ensures smooth operation and reduces shock impacts, extending the lifespan of the unit.
- 4Suitable for various industrial applications, including handling and gripping tasks, this unit is a versatile solution for your automation needs.
- 5Designed with a semi-rotary drive and parallel gripper design, the HGDS-PP-20-P-A is easy to install and integrate into your existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 20 | Adjustment range of swivel angle | 0deg 210deg |
Stroke per gripper jaw | 7mm | Max. gripper jaw angular play ax, ay | 0.1deg |
Max. gripper jaw backlash Sz | 0.02mm | Swivel angle | 210deg |
Pneumatic gripper repetition accuracy | 0.015mm | Repetition accuracy of swivel angle | 0.2deg |
Number of gripper jaws | 2 | Quarter turn actuator cushioning | Elastic cushioning rings/pads at both ends |
Cushioning | Elastic cushioning rings/pads at both ends | Cushioning adjustment range | 2.8mm |
Mounting position | Any | Quarter turn actuator fine tuning | -6deg |
Mode of operation | Double-acting | Gripper function | Parallel |
Structural design | Quarter turn actuator with parallel gripper and gripper actuator | Position sensing, pneumatic gripper | With proximity sensor |
Quarter turn actuator position sensing | With proximity sensor | Symbol | 00991893 |
Operating pressure | 3bar 8bar | Max. operating frequency of pneumatic gripper | 4Hz |
Max. swivel frequency at 6?bar | 2Hz | Min. opening time at 6 bar | 60ms |
Min. closing time at 6 bar | 70ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 5°C 60°C |
Gripping force per gripper jaw at 6 bar, opening | 192N | Gripping force per gripper jaw at 6 bar, closing | 168N |
Maximum force on gripper jaw Fz, static | 250N | Maximum torque on gripper jaw, Mx static | 22Nm |
Maximum torque on gripper jaw, My static | 22Nm | Maximum torque on gripper jaw, Mz static | 22Nm |
Theoretical torque at 6 bar | 2.5Nm | Product weight | 1260g |
Max. mass per external gripper finger | 100g | Max. mass per external gripper finger, throttled | 100g |
Type of mounting | Optionally: With internal thread and centering sleeve Via through-hole and centering sleeve With dovetail slot | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Drive shaft material | Steel |
Cover material | Aluminum POM | Seals material | NBR |
Housing material | Wrought aluminum alloy | Gripper jaw material | High-alloy stainless steel |
Manufacturer ID | 1187961 |
Specifications may be subject to change without notice
