Product Model
hgl-1/2-npt
Selling Points

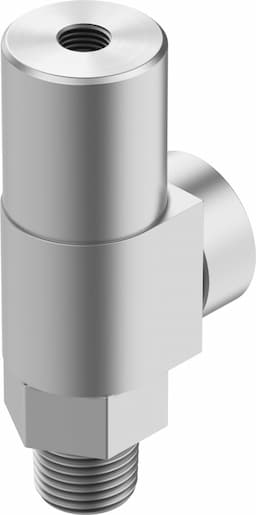

- 1The Festo HGL-1/2-NPT pneumatic check valve features a piloted non-return function, ensuring reliable control of air flow in one direction while allowing free flow in the other.
- 2With a rotary body design, this valve offers 360° rotation, making it versatile for various pneumatic system configurations.
- 3The valve is designed for medium-filtered, lubricated, or unlubricated compressed air applications, providing flexibility in different operating conditions.
- 4The HGL-1/2-NPT check valve is available in 1/2" NPT threaded connections, ensuring easy integration into your existing pneumatic systems.
- 5Festo's HGL series check valves are known for their high-quality materials, including brass housing and Buna N seals, ensuring durability and long service life.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Unlockable non-return function | Pneumatic connection 1 | 1/2 NPT |
Pneumatic connection 2 | 1/2 NPT | Type of mounting | Screw-in |
Standard nominal flow rate | 0l/min 1600l/min | Operating pressure | 0.2bar 10bar |
Pilot pressure MPa | 0.1MPa 1MPa | Pilot pressure | 1bar 10bar |
Pilot pressure psi | 14.5psi 145psi | Ambient temperature | -20°C 80°C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Symbol | 00991456 |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -20°C 80°C | Note on materials | RoHS-compliant |
Manufacturer ID | 34880 |
Specifications may be subject to change without notice
