Product Model
hgl-1/8-npt
Selling Points

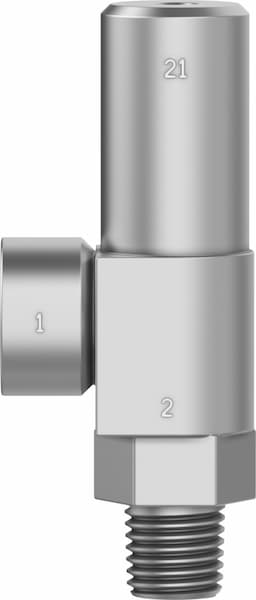

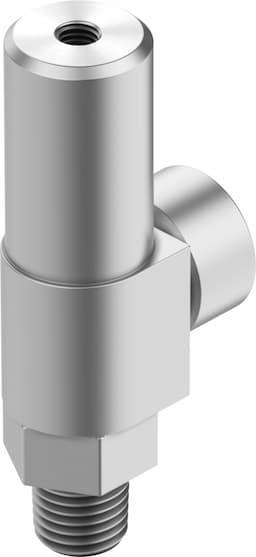

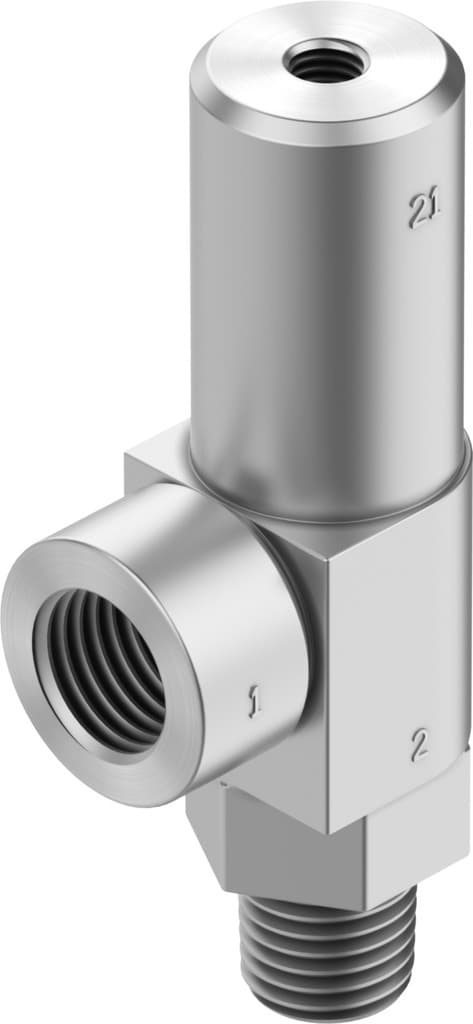

- 1The Festo HGL-1/8-NPT piloted check valve is designed for reliable pneumatic control, ensuring smooth operation in compressed air applications. Its rotatable body allows for easy installation and adjustment.
- 2This piloted check valve features a high flow rate, making it suitable for various pneumatic systems. It is available in 1/8" NPT threaded connections, providing versatility in mounting options.
- 3The HGL-1/8-NPT is constructed from brass, ensuring durability and resistance to corrosion. The valve's performance is backed by rigorous testing, adhering to ISO 19973 standards for component reliability.
- 4With a service life of 10 million cycles, this check valve is built to last. It operates within a temperature range of -4 to 176°F (-20 to +80°C), making it suitable for a wide range of industrial environments.
- 5The Festo HGL-1/8-NPT piloted check valve is part of the HGL series, known for its non-return function and piloted operation. It is ideal for controlling cylinder movement and ensuring one-way air flow in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Unlockable non-return function | Pneumatic connection 1 | 1/8 NPT |
Pneumatic connection 2 | 1/8 NPT | Type of mounting | Screw-in |
Standard nominal flow rate | 0l/min 260l/min | Operating pressure | 0.3bar 10bar |
Pilot pressure MPa | 0.2MPa 1MPa | Pilot pressure | 2bar 10bar |
Pilot pressure psi | 29psi 145psi | Ambient temperature | -20°C 80°C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Symbol | 00991456 |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -20°C 80°C | Note on materials | RoHS-compliant |
Manufacturer ID | 34877 |
Specifications may be subject to change without notice
