Product Model

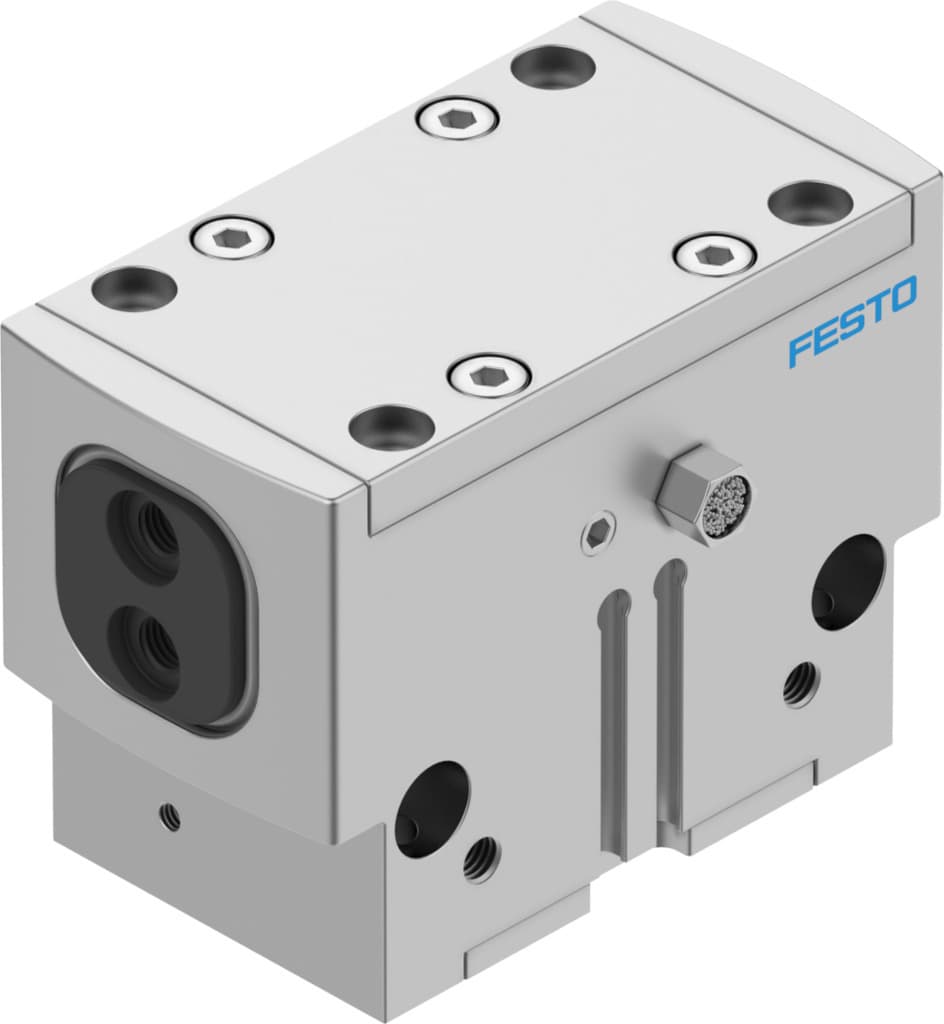

hgpd-35-a
Selling Points
- 1High Precision: The Festo HGPD-35-A offers a maximum replacement accuracy of 0.2 mm and a repetition accuracy of 0.05 mm, ensuring precise gripping and handling.
- 2Robust Design: Constructed with hardened steel gripper jaws and anodized aluminum housing, this gripper provides durability and resistance to corrosion.
- 3Versatile Operation: Equipped with a double-acting mode of operation and a wedge-shaped drive design, the HGPD-35-A can handle various gripping tasks efficiently.
- 4Easy Position Detection: Featuring position detection via proximity switch, this gripper ensures accurate control and monitoring of its operation.
- 5Wide Operating Range: Compatible with compressed air to ISO 8573-1:2010 [7:4:4], the HGPD-35-A operates effectively within a wide pressure range of 3 to 8 bar.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 35 | Stroke per gripper jaw | 8mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.1deg |
Max. gripper jaw backlash Sz | 0.02mm | Rotational symmetry | 0.2mm |
Pneumatic gripper repetition accuracy | 0.05mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mounting position | Any |
Mode of operation | Double-acting | Gripper function | Parallel |
Gripping force backup | Without | Structural design | Inclined plane Positively driven motion sequence |
Position sensing | For proximity sensor | Symbol | 00991894 |
Operating pressure | 3bar 8bar | Operating pressure for sealing air | 0bar 0.5bar |
Max. operating frequency of pneumatic gripper | 3Hz | Min. opening time at 6 bar | 33ms |
Min. closing time at 6 bar | 37ms | Max. mass per external gripper finger | 278g |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Degree of protection | IP65 | Ambient temperature | 5°C 60°C |
Gripping force per gripper jaw at 6 bar, opening | 291N | Gripping force per gripper jaw at 6 bar, closing | 267N |
Mass moment of inertia | 3.56kgcm2 | Maximum force on gripper jaw Fz, static | 750N |
Maximum torque on gripper jaw, Mx static | 40Nm | Maximum torque on gripper jaw, My static | 30Nm |
Maximum torque on gripper jaw, Mz static | 25Nm | Relubrication interval for guidance elements | 5MioCyc |
Product weight | 572g | Type of mounting | Optionally: With internal thread and centering sleeve Via through-hole and centering sleeve With through-hole and dowel pin With internal thread and dowel pin |
Sealing air pneumatic connection | M5 | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover cap material | High-alloy stainless steel |
Housing material | Aluminum, anodized | Gripper jaw material | Hardened steel |
Manufacturer ID | 1132945 |
