Product Model

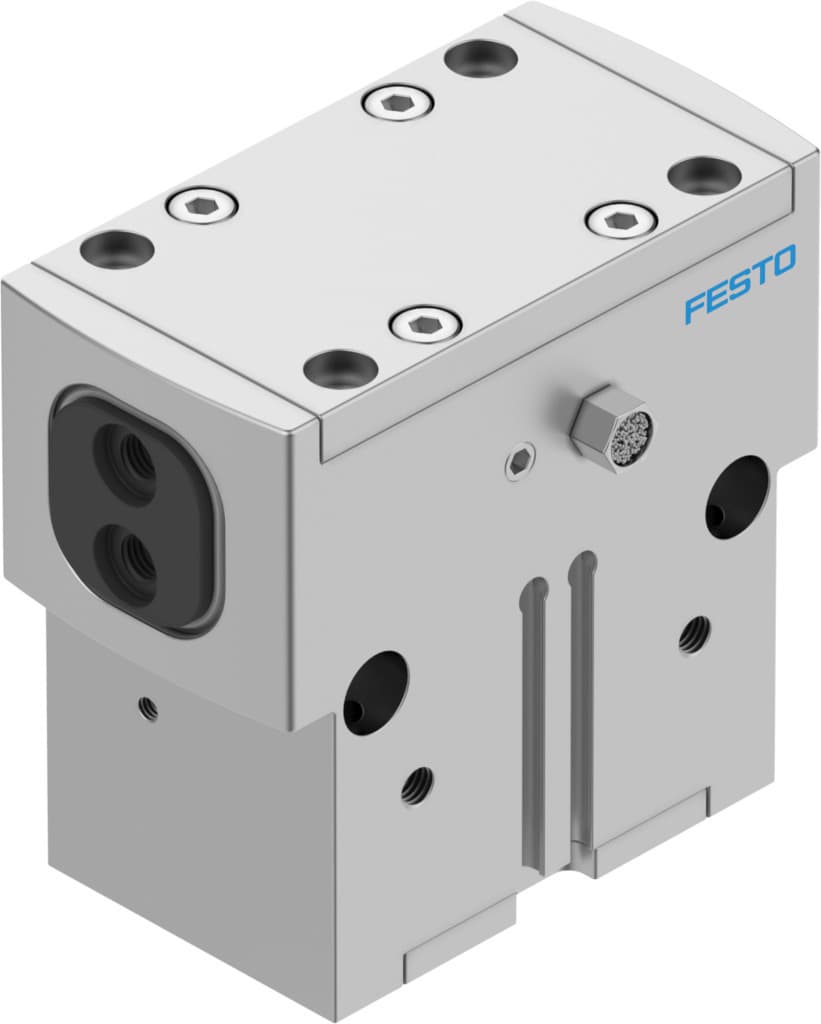

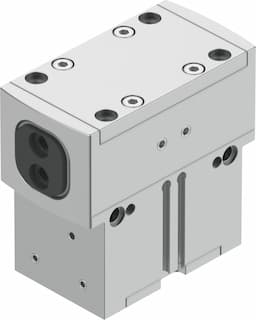

hgpd-35-a-g2
Selling Points
- 1The Festo HGPD-35-A-G2 parallel gripper offers exceptional precision with a maximum exchange precision of ≤0.2 mm and repeatability of ≤0.05 mm, ensuring accurate handling in various applications.
- 2This gripper provides flexible mounting and air supply options, including direct front or bottom connections and adapter plate mounting, making it suitable for diverse installation scenarios.
- 3Built with hardened steel gripper jaws and an aluminum anodized housing, the HGPD-35-A-G2 ensures durability and resistance to corrosion, meeting a corrosion-resistant class KBK 2.
- 4The gripper can operate in a double-acting mode with compression springs for supplementary gripping forces, offering flexibility in handling tasks.
- 5Designed to operate in humid environments and with liquid/gaseous media when properly configured, the HGPD-35-A-G2 is versatile for various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 35 | Stroke per gripper jaw | 8mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.1deg |
Max. gripper jaw backlash Sz | 0.02mm | Rotational symmetry | 0.2mm |
Pneumatic gripper repetition accuracy | 0.05mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mounting position | Any |
Mode of operation | Double-acting | Gripper function | Parallel |
Gripping force backup | During closing | Structural design | Inclined plane Positively driven motion sequence |
Position sensing | For proximity sensor | Symbol | 00991895 |
Operating pressure | 4bar 8bar | Operating pressure for sealing air | 0bar 0.5bar |
Max. operating frequency of pneumatic gripper | 3Hz | Min. opening time at 6 bar | 50ms |
Min. closing time at 6 bar | 36ms | Max. mass per external gripper finger | 278g |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Degree of protection | IP65 | Ambient temperature | 5°C 60°C |
Mass moment of inertia | 4.88kgcm2 | Maximum torque on gripper jaw, Mx static | 40Nm |
Maximum torque on gripper jaw, My static | 30Nm | Maximum torque on gripper jaw, Mz static | 25Nm |
Relubrication interval for guidance elements | 5MioCyc | Product weight | 682g |
Type of mounting | Optionally: With internal thread and centering sleeve Via through-hole and centering sleeve With through-hole and dowel pin With internal thread and dowel pin | Sealing air pneumatic connection | M5 |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover cap material | High-alloy stainless steel | Housing material | Aluminum, anodized |
Gripper jaw material | Hardened steel | Manufacturer ID | 1132947 |
Specifications may be subject to change without notice
