Product Model

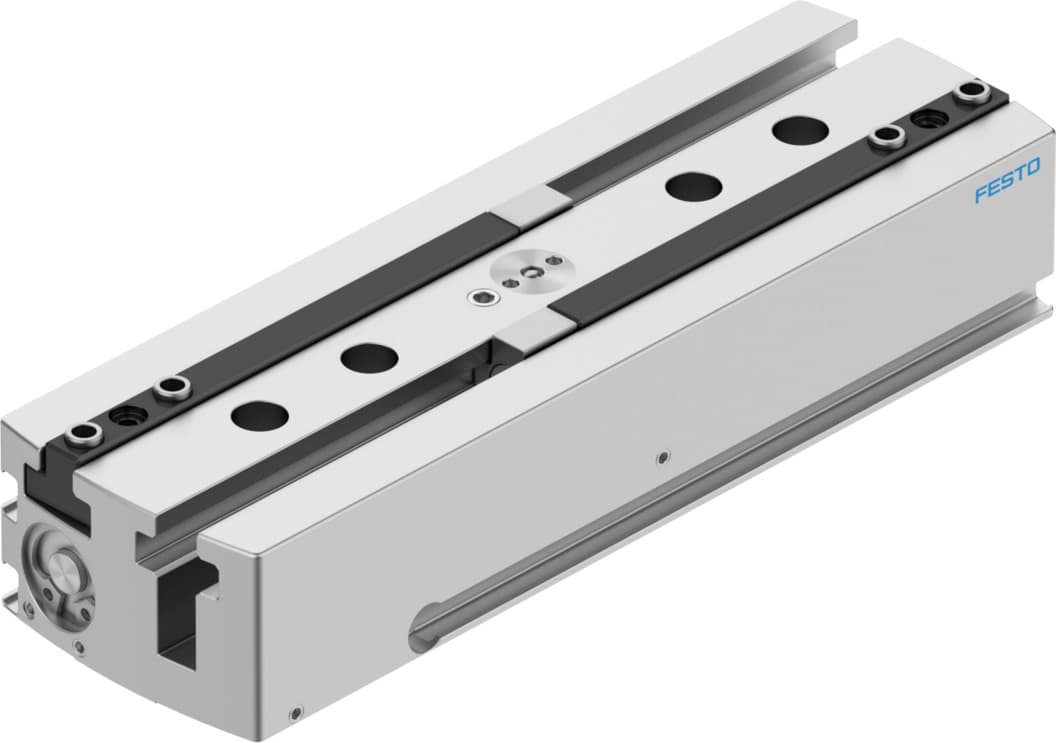

hgpl-14-60-a-b
Selling Points
- 1High Precision: The Festo HGPL-14-60-A-B parallel gripper offers a maximum replacement accuracy of 0.2 mm and a repetition accuracy of 0.03 mm, ensuring precise gripping and handling of components.
- 2Double-Acting Operation: This gripper operates in double-acting mode, allowing for both opening and closing actions with compressed air, enhancing its versatility and efficiency in various industrial processes.
- 3Robust Design: Constructed with a twin piston design and featuring a T-shape and rack and pinion mechanism, the HGPL-14-60-A-B provides robust performance and reliability in demanding applications.
- 4Wide Operating Range: The gripper operates within a pressure range of 3 to 8 bar and can handle ambient temperatures from 5°C to 60°C, making it suitable for a variety of industrial environments.
- 5Easy Mounting and Position Detection: The gripper can be mounted via female thread and centring sleeve or through-hole and centring sleeve, and it includes position detection via proximity switch, simplifying installation and operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 14 | Stroke per gripper jaw | 60mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.2deg |
Max. gripper jaw backlash Sz | 0.05mm | Rotational symmetry | 0.2mm |
Pneumatic gripper repetition accuracy | 0.03mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mounting position | Any |
Mode of operation | Double-acting | Gripper function | Parallel |
Gripping force backup | Without | Structural design | Twin piston Guide Piston gate valve T-shape Gear rack/pinion |
Position sensing | For proximity sensor | Symbol | 00991894 |
Operating pressure | 3bar 8bar | Max. operating frequency of pneumatic gripper | 1Hz |
Min. opening time at 6 bar | 270ms | Min. closing time at 6 bar | 230ms |
Max. mass per external gripper finger | 80g | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 5°C 60°C |
Gripping force per gripper jaw at 6 bar, opening | 63N | Gripping force per gripper jaw at 6 bar, closing | 79N |
Mass moment of inertia | 11.43kgcm2 | Maximum force on gripper jaw Fz, static | 500N |
Maximum torque on gripper jaw, Mx static | 35Nm | Maximum torque on gripper jaw, My static | 35Nm |
Maximum torque on gripper jaw, Mz static | 35Nm | Relubrication interval for guidance elements | 5MioCyc |
Product weight | 595g | Type of mounting | With internal thread and centering sleeve Via through-hole and centering sleeve |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Housing material | Wrought aluminum alloy, smooth-anodized | Gripper jaw material | Hardened steel |
Manufacturer ID | 3361481 |
Specifications may be subject to change without notice
