Product Model

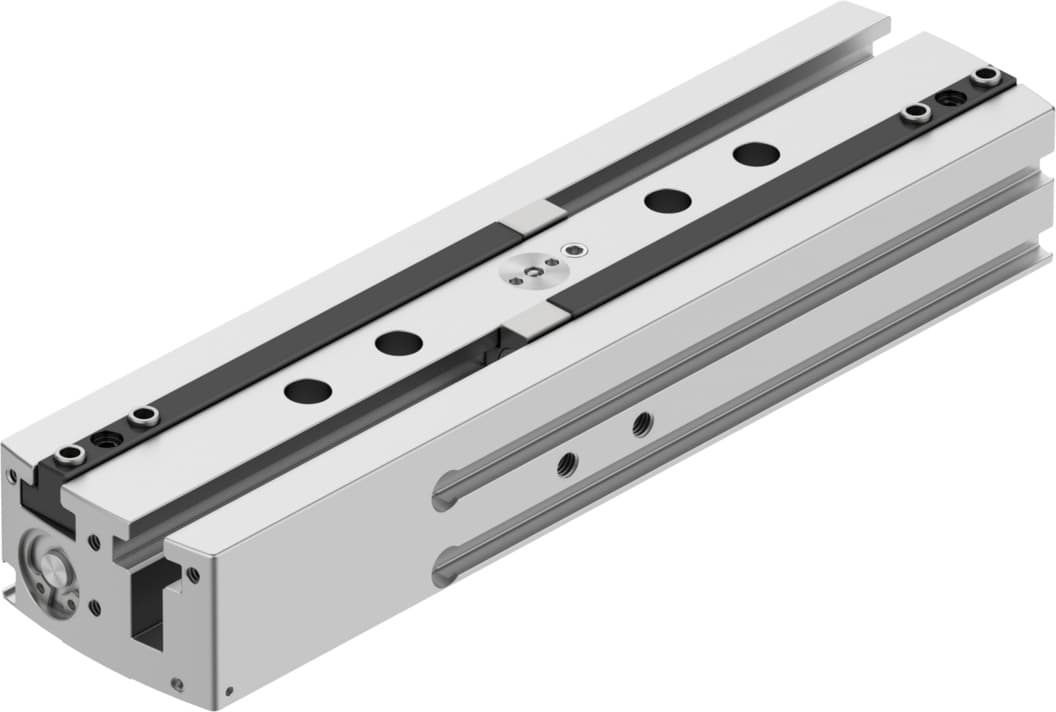

hgpl-14-80-a-b
Selling Points
- 1The HGPL-14-80-A-B offers a max. replacement accuracy of <0.2 mm and a repetition accuracy of <0.03 mm, ensuring precise handling in various applications.
- 2This gripper can be mounted via female thread and centring sleeve or through-hole and centring sleeve, providing flexibility in installation.
- 3Constructed with a smooth-anodized wrought aluminum alloy housing and hardened steel gripper jaws, it ensures durability and resistance to corrosion.
- 4With a min. opening time of 286 ms and min. closing time of 270 ms at 6 bar, it operates efficiently in double-acting mode.
- 5Compatible with compressed air as per ISO 8573-1:2010, it supports lubricated operation for extended use and can operate within an ambient temperature range of 5 °C to 60 °C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 14 | Stroke per gripper jaw | 80mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.2deg |
Max. gripper jaw backlash Sz | 0.05mm | Rotational symmetry | 0.2mm |
Pneumatic gripper repetition accuracy | 0.03mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mounting position | Any |
Mode of operation | Double-acting | Gripper function | Parallel |
Gripping force backup | Without | Structural design | Twin piston Guide Piston gate valve T-shape Gear rack/pinion |
Position sensing | For proximity sensor | Symbol | 00991894 |
Operating pressure | 3bar 8bar | Max. operating frequency of pneumatic gripper | 1Hz |
Min. opening time at 6 bar | 286ms | Min. closing time at 6 bar | 270ms |
Max. mass per external gripper finger | 80g | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 5°C 60°C |
Gripping force per gripper jaw at 6 bar, opening | 63N | Gripping force per gripper jaw at 6 bar, closing | 79N |
Mass moment of inertia | 21.93kgcm2 | Maximum force on gripper jaw Fz, static | 500N |
Maximum torque on gripper jaw, Mx static | 35Nm | Maximum torque on gripper jaw, My static | 35Nm |
Maximum torque on gripper jaw, Mz static | 35Nm | Relubrication interval for guidance elements | 5MioCyc |
Product weight | 720g | Type of mounting | With internal thread and centering sleeve Via through-hole and centering sleeve |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Housing material | Wrought aluminum alloy, smooth-anodized | Gripper jaw material | Hardened steel |
Manufacturer ID | 3361482 |
Specifications may be subject to change without notice
