Product Model

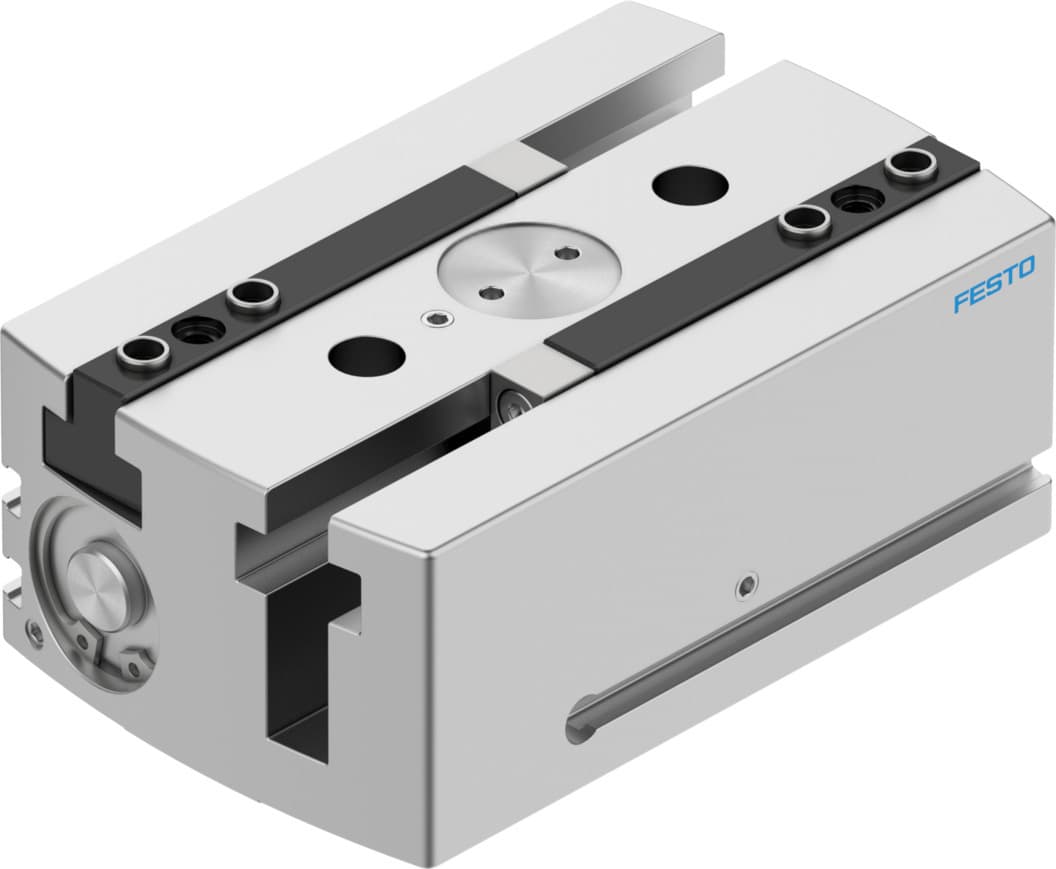

hgpl-25-40-a-b
Selling Points
- 1The Festo HGPL-25-40-A-B parallel gripper ensures high precision with a repeatability accuracy of less than 0.03 mm, making it suitable for demanding applications.
- 2Featuring a twin piston, piston spool valve, and T-shape design, this gripper offers flexibility in operation and can be mounted in any position.
- 3Built with hardened steel gripper jaws and an aluminum housing, the HGPL-25-40-A-B provides durability and resistance to wear and tear.
- 4With a double-acting mode of operation and a stroke per gripper jaw of 40 mm, this gripper ensures efficient handling of various materials.
- 5Equipped with M5 pneumatic connections and through-hole mounting options, the HGPL-25-40-A-B is easy to install and maintain, reducing downtime and increasing productivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 25 | Stroke per gripper jaw | 40mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.2deg |
Max. gripper jaw backlash Sz | 0.05mm | Rotational symmetry | 0.2mm |
Pneumatic gripper repetition accuracy | 0.03mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mounting position | Any |
Mode of operation | Double-acting | Gripper function | Parallel |
Gripping force backup | Without | Structural design | Twin piston Guide Piston gate valve T-shape Gear rack/pinion |
Position sensing | For proximity sensor | Symbol | 00991894 |
Operating pressure | 3bar 8bar | Max. operating frequency of pneumatic gripper | 1Hz |
Min. opening time at 6 bar | 225ms | Min. closing time at 6 bar | 230ms |
Max. mass per external gripper finger | 250g | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 5°C 60°C |
Gripping force per gripper jaw at 6 bar, opening | 206N | Gripping force per gripper jaw at 6 bar, closing | 256N |
Mass moment of inertia | 18.88kgcm2 | Maximum force on gripper jaw Fz, static | 1500N |
Maximum torque on gripper jaw, Mx static | 100Nm | Maximum torque on gripper jaw, My static | 60Nm |
Maximum torque on gripper jaw, Mz static | 70Nm | Relubrication interval for guidance elements | 5MioCyc |
Product weight | 1400g | Type of mounting | With internal thread and centering sleeve Via through-hole and centering sleeve |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Housing material | Wrought aluminum alloy, smooth-anodized | Gripper jaw material | Hardened steel |
Manufacturer ID | 3361484 |
Specifications may be subject to change without notice
