Product Model

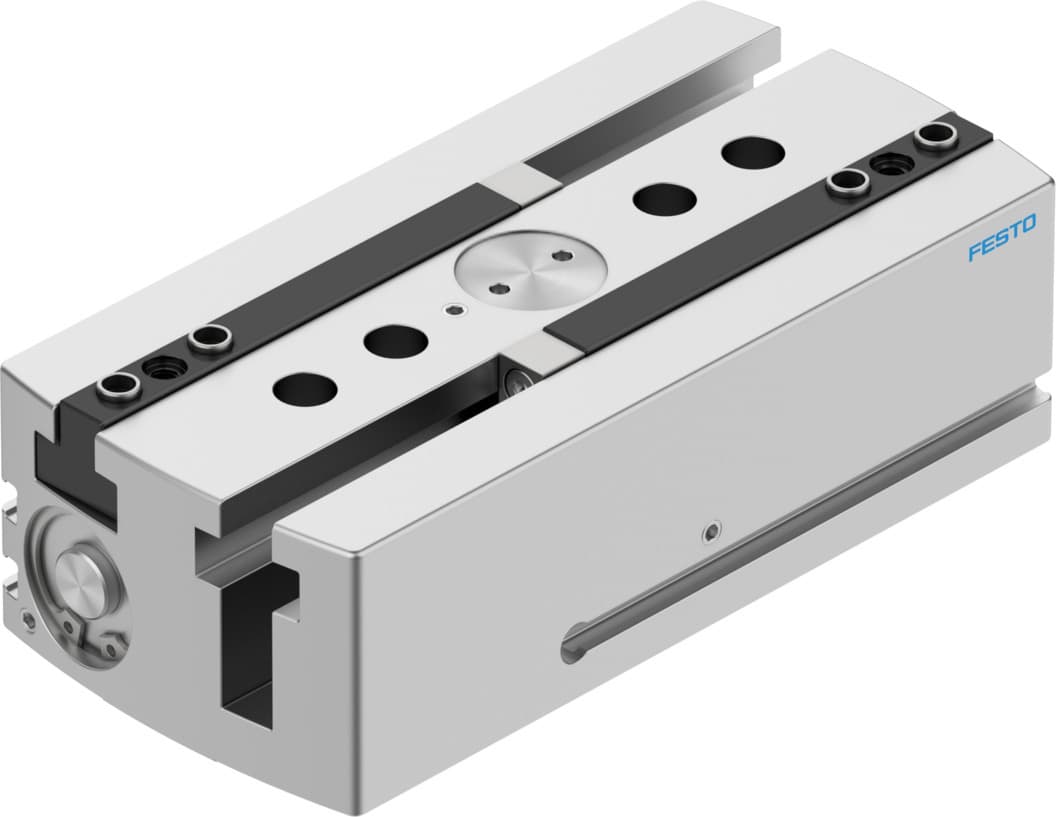

hgpl-25-60-a-b
Selling Points
- 1The Festo HGPL-25-60-A-B pneumatic gripper offers high precision and reliability, making it ideal for handling a wide range of materials in various industrial settings.
- 2This gripper features a robust design with long strokes, ensuring consistent performance even in demanding applications.
- 3The HGPL-25-60-A-B is designed with ease of use in mind, featuring intuitive operation and minimal maintenance requirements.
- 4It supports both pneumatic and electric configurations, providing flexibility for different automation needs.
- 5The gripper is part of Festo's comprehensive product range, ensuring compatibility with other Festo components for seamless integration into your automation system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 25 | Stroke per gripper jaw | 60mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.2deg |
Max. gripper jaw backlash Sz | 0.05mm | Rotational symmetry | 0.2mm |
Pneumatic gripper repetition accuracy | 0.03mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mounting position | Any |
Mode of operation | Double-acting | Gripper function | Parallel |
Gripping force backup | Without | Structural design | Twin piston Guide Piston gate valve T-shape Gear rack/pinion |
Position sensing | For proximity sensor | Symbol | 00991894 |
Operating pressure | 3bar 8bar | Max. operating frequency of pneumatic gripper | 1Hz |
Min. opening time at 6 bar | 370ms | Min. closing time at 6 bar | 370ms |
Max. mass per external gripper finger | 250g | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 5°C 60°C |
Gripping force per gripper jaw at 6 bar, opening | 206N | Gripping force per gripper jaw at 6 bar, closing | 256N |
Mass moment of inertia | 39.95kgcm2 | Maximum force on gripper jaw Fz, static | 1500N |
Maximum torque on gripper jaw, Mx static | 100Nm | Maximum torque on gripper jaw, My static | 60Nm |
Maximum torque on gripper jaw, Mz static | 70Nm | Relubrication interval for guidance elements | 5MioCyc |
Product weight | 1780g | Type of mounting | With internal thread and centering sleeve Via through-hole and centering sleeve |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Housing material | Wrought aluminum alloy, smooth-anodized | Gripper jaw material | Hardened steel |
Manufacturer ID | 3361485 |
Specifications may be subject to change without notice
