Product Model

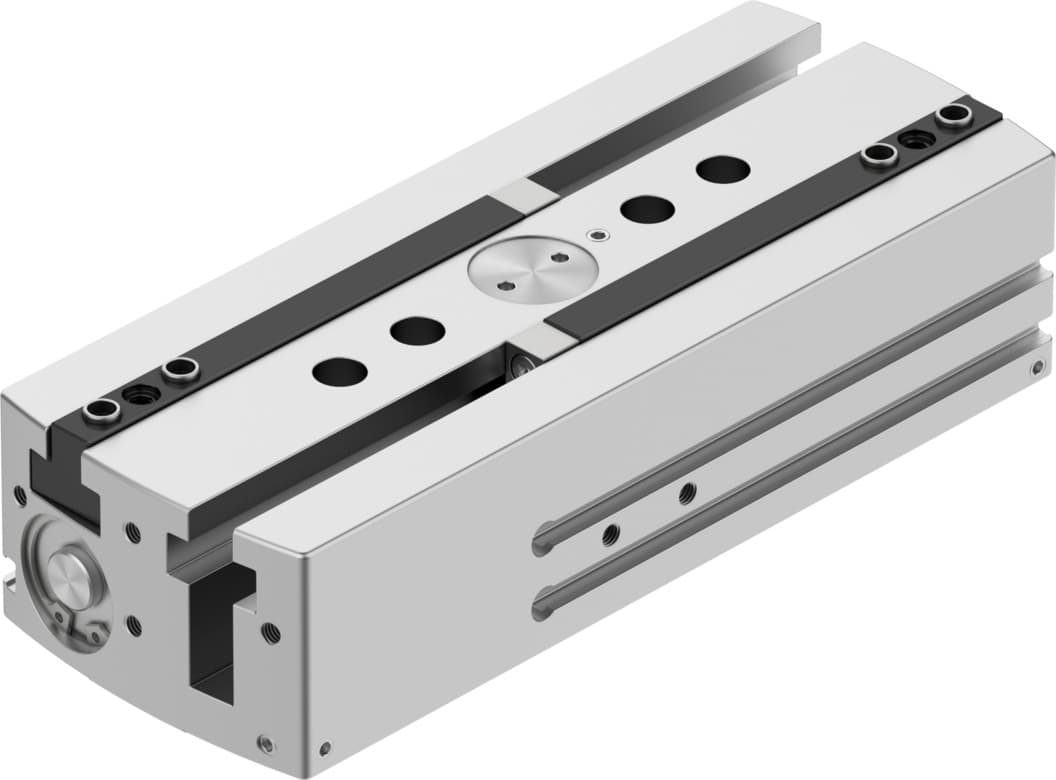

hgpl-25-80-a-b
Selling Points
- 1High Precision Handling: The Festo HGPL-25-80-A-B parallel gripper ensures precise handling with a maximum replacement accuracy of 0.2 mm and angular gripper jaw backlash of 0.2 degrees.
- 2Robust Construction: Built with a smooth-anodized wrought aluminum alloy housing and hardened steel gripper jaws, this gripper provides robust construction and durability.
- 3Versatile Mounting Options: The gripper offers optional mounting positions and can be mounted via female thread and centring sleeve or through-hole and centring sleeve, providing flexibility in installation.
- 4Efficient Operation: With a pneumatic drive system and double-acting mode of operation, the HGPL-25-80-A-B ensures efficient and reliable performance in various industrial applications.
- 5Comprehensive Accessories: Festo offers a range of accessories including tubes, fittings, mounting accessories, and proximity sensors to complement the HGPL-25-80-A-B gripper, enhancing its functionality and usability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 25 | Stroke per gripper jaw | 80mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.2deg |
Max. gripper jaw backlash Sz | 0.05mm | Rotational symmetry | 0.2mm |
Pneumatic gripper repetition accuracy | 0.03mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mounting position | Any |
Mode of operation | Double-acting | Gripper function | Parallel |
Gripping force backup | Without | Structural design | Twin piston Guide Piston gate valve T-shape Gear rack/pinion |
Position sensing | For proximity sensor | Symbol | 00991894 |
Operating pressure | 3bar 8bar | Max. operating frequency of pneumatic gripper | 1Hz |
Min. opening time at 6 bar | 423ms | Min. closing time at 6 bar | 418ms |
Max. mass per external gripper finger | 250g | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 5°C 60°C |
Gripping force per gripper jaw at 6 bar, opening | 206N | Gripping force per gripper jaw at 6 bar, closing | 256N |
Mass moment of inertia | 78.7kgcm2 | Maximum force on gripper jaw Fz, static | 1500N |
Maximum torque on gripper jaw, Mx static | 100Nm | Maximum torque on gripper jaw, My static | 60Nm |
Maximum torque on gripper jaw, Mz static | 70Nm | Relubrication interval for guidance elements | 5MioCyc |
Product weight | 2200g | Type of mounting | With internal thread and centering sleeve Via through-hole and centering sleeve |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Housing material | Wrought aluminum alloy, smooth-anodized | Gripper jaw material | Hardened steel |
Manufacturer ID | 3361486 |
Specifications may be subject to change without notice
