Product Model

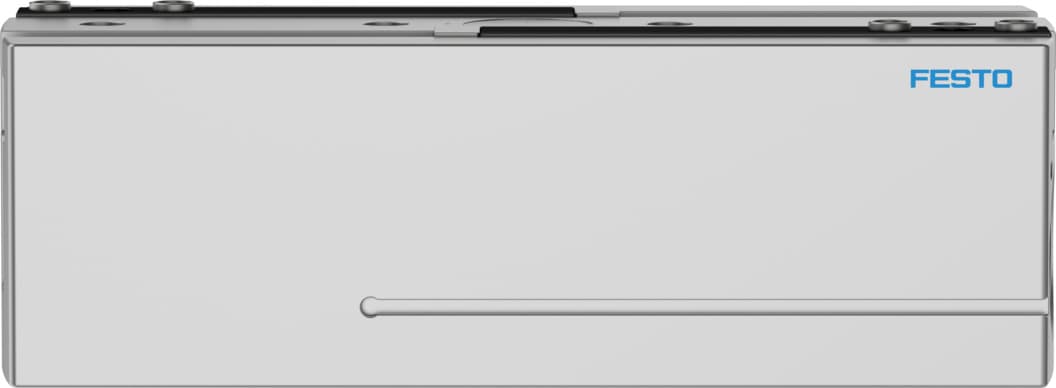

hgpl-63-150-a-b
Selling Points
- 1The HGPL-63-150-A-B offers a maximum replacement accuracy of <0.2 mm and a repetition accuracy of <0.03 mm, ensuring precise gripping and handling.
- 2This gripper can be mounted in any position, providing flexibility in various automation setups, including double-acting mode of operation.
- 3Constructed with hardened steel gripper jaws and a wrought aluminum alloy housing, the HGPL-63-150-A-B is built to withstand moderate corrosion stress and operate within a wide temperature range (5°C to 60°C).
- 4With a maximum operating frequency of <1 Hz, this gripper ensures efficient operation and can handle tasks with minimal downtime. The min. opening time at 6 bar is 1020 ms, and the min. closing time is 850 ms.
- 5Compatible with compressed air as per ISO 8573-1:2010, this gripper supports lubricated operation and can be integrated into various pneumatic systems for smooth performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 63 | Stroke per gripper jaw | 150mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.2deg |
Max. gripper jaw backlash Sz | 0.05mm | Rotational symmetry | 0.2mm |
Pneumatic gripper repetition accuracy | 0.03mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mounting position | Any |
Mode of operation | Double-acting | Gripper function | Parallel |
Gripping force backup | Without | Structural design | Twin piston Guide Piston gate valve T-shape Gear rack/pinion |
Position sensing | For proximity sensor | Symbol | 00991894 |
Operating pressure | 3bar 8bar | Max. operating frequency of pneumatic gripper | 1Hz |
Min. opening time at 6 bar | 1020ms | Min. closing time at 6 bar | 850ms |
Max. mass per external gripper finger | 940g | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 5°C 60°C |
Gripping force per gripper jaw at 6 bar, opening | 1233N | Gripping force per gripper jaw at 6 bar, closing | 1371N |
Mass moment of inertia | 2247.54kgcm2 | Maximum force on gripper jaw Fz, static | 9000N |
Maximum torque on gripper jaw, Mx static | 300Nm | Maximum torque on gripper jaw, My static | 200Nm |
Maximum torque on gripper jaw, Mz static | 250Nm | Relubrication interval for guidance elements | 5MioCyc |
Product weight | 18100g | Type of mounting | With internal thread and centering sleeve Via through-hole and centering sleeve |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Housing material | Wrought aluminum alloy, smooth-anodized | Gripper jaw material | Hardened steel |
Manufacturer ID | 3361494 |
Specifications may be subject to change without notice
