Product Model

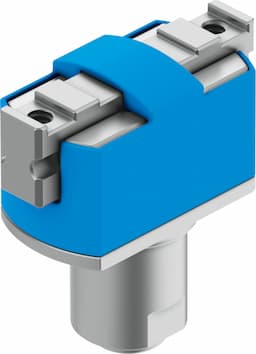

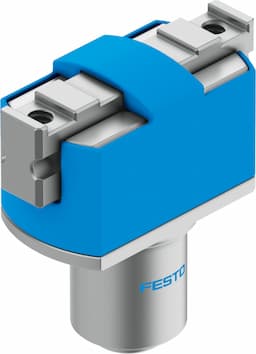

hgpm-08-eo-g8
Selling Points
- 1The HGPM-08-EO-G8 offers a stroke of 2 mm and a maximum replacement accuracy of 0.2 mm, ensuring precise handling and assembly tasks.
- 2With a maximum angular gripper jaw backlash of 0.5 degrees, this gripper minimizes errors in repetitive operations, enhancing overall system efficiency.
- 3Constructed from high-alloy steel for the gripper jaws and anodized wrought aluminum alloy for the housing, the HGPM-08-EO-G8 is built to withstand various operating conditions.
- 4Available with through-holes, screws, and dowel pins for flange mounting, this gripper can be easily integrated into various automation systems.
- 5Operating at pressures between 4 and 8 bar, the HGPM-08-EO-G8 provides fast opening and closing times of 4.9 ms and 2.3 ms respectively, ensuring high productivity in pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 8 | Stroke per gripper jaw | 2mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.5deg |
Max. gripper jaw backlash Sz | 0.03mm | Rotational symmetry | 0.15mm |
Pneumatic gripper repetition accuracy | 0.05mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mode of operation | Single-acting Open |
Gripper function | Parallel | Gripping force backup | Without |
Structural design | Inclined plane | Position sensing | None |
Symbol | 00991897 | Operating pressure | 4bar 8bar |
Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 4.9ms |
Min. closing time at 6 bar | 2.3ms | Max. mass per external gripper finger | 5g |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | 5°C 60°C | Gripping force per gripper jaw at 6 bar, opening | 16N |
Gripping force per gripper jaw at 6 bar, closing | 8N | Mass moment of inertia | 0.00573kgcm2 |
Maximum force on gripper jaw Fz, static | 10N | Maximum torque on gripper jaw, Mx static | 0.1Nm |
Maximum torque on gripper jaw, My static | 0.1Nm | Maximum torque on gripper jaw, Mz static | 0.1Nm |
Product weight | 11g | Type of mounting | Clamped |
Pneumatic connection | M3 | Note on materials | RoHS-compliant |
Cover cap material | POM | Housing material | Wrought aluminum alloy, anodized |
Gripper jaw material | High-alloy steel | Manufacturer ID | 197560 |
Specifications may be subject to change without notice
