Product Model

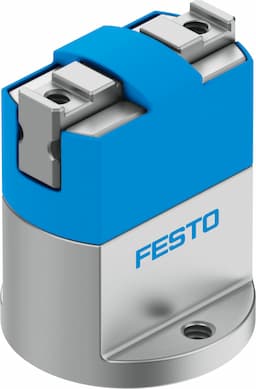

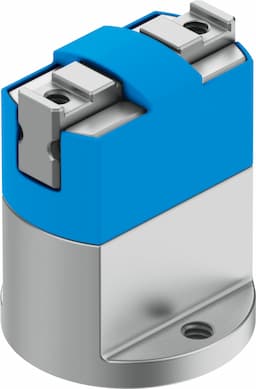

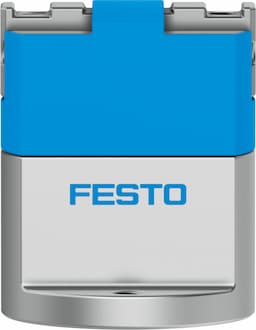

hgpm-08-ez-g9
Selling Points
- 1High Precision Automation: The Festo HGPM-08-EZ-G9 parallel gripper offers exceptional accuracy with a maximum replacement accuracy of 0.2 mm and repetition accuracy of ≤0.05 mm, ensuring precise handling in various industrial applications.
- 2Direct Flange Mounting: This gripper features direct flange mounting with screws, making it easy to integrate into your system. Locating pins are used for centring, ensuring precise alignment.
- 3Compact Design: With a size of 8 and a stroke per gripper jaw of 2 mm, the HGPM-08-EZ-G9 is designed for compact spaces, making it suitable for a wide range of industrial automation tasks.
- 4Versatile Operation: The gripper operates single-acting with a parallel gripper function, providing reliable and efficient handling of various materials. It can handle a total force of 16 N at 6 bar operating pressure.
- 5Easy Integration: The Festo HGPM-08-EZ-G9 is part of Festo's comprehensive product range, offering everything from pneumatic components to complete automation solutions. This makes it easy to integrate into your existing setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 8 | Stroke per gripper jaw | 2mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.5deg |
Max. gripper jaw backlash Sz | 0.03mm | Rotational symmetry | 0.15mm |
Pneumatic gripper repetition accuracy | 0.05mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mode of operation | Single-acting Closed |
Gripper function | Parallel | Gripping force backup | Without |
Structural design | Inclined plane | Position sensing | None |
Symbol | 00991898 | Operating pressure | 4bar 8bar |
Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 1.9ms |
Min. closing time at 6 bar | 4.1ms | Max. mass per external gripper finger | 5g |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | 5°C 60°C | Gripping force per gripper jaw at 6 bar, closing | 16N |
Gripping force per gripper jaw at 6 bar, opening | 8N | Mass moment of inertia | 0.01712kgcm2 |
Maximum force on gripper jaw Fz, static | 10N | Maximum torque on gripper jaw, Mx static | 0.1Nm |
Maximum torque on gripper jaw, My static | 0.1Nm | Maximum torque on gripper jaw, Mz static | 0.1Nm |
Product weight | 18g | Type of mounting | With internal thread |
Pneumatic connection | M3 | Note on materials | RoHS-compliant |
Cover cap material | POM | Housing material | Wrought aluminum alloy, anodized |
Gripper jaw material | High-alloy steel | Manufacturer ID | 197564 |
Specifications may be subject to change without notice
