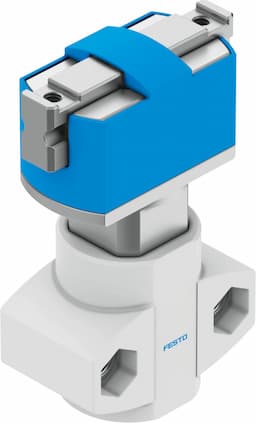

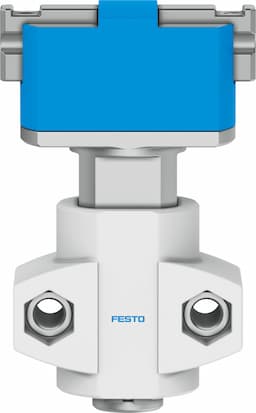

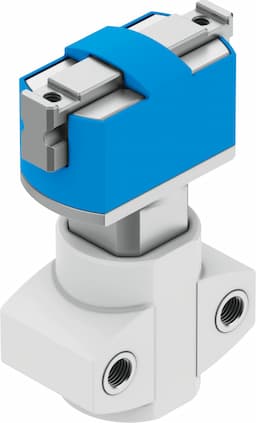

Product Model
hgpm-12-eo-g6
Selling Points
- 1The HGPM-12-EO-G6 offers a stroke per gripper jaw of 3 mm, ensuring precise handling and control in various industrial applications.
- 2With a maximum replacement accuracy of 0.2 mm and repetition accuracy of <= 0.05 mm, this gripper ensures reliable and consistent performance.
- 3Designed for single-acting open operation, the HGPM-12-EO-G6 can be easily integrated into various pneumatic systems, making it versatile for different handling tasks.
- 4Built with high-alloy steel gripper jaws and anodized wrought aluminum alloy housing, this gripper provides robustness and durability in demanding environments.
- 5Operating at pressures between 4 and 8 bar, the HGPM-12-EO-G6 offers efficient performance with a maximum operating frequency of 4 Hz and minimal opening and closing times of 11 ms and 3.7 ms respectively.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Stroke per gripper jaw | 3mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.5deg |
Max. gripper jaw backlash Sz | 0.03mm | Pneumatic gripper repetition accuracy | 0.05mm |
Number of gripper jaws | 2 | Actuator system | Pneumatic |
Mode of operation | Single-acting Open | Gripper function | Parallel |
Gripping force backup | Without | Structural design | Inclined plane |
Position sensing | None | Symbol | 00991897 |
Operating pressure | 4bar 8bar | Max. operating frequency of pneumatic gripper | 4Hz |
Min. opening time at 6 bar | 11ms | Min. closing time at 6 bar | 3.7ms |
Max. mass per external gripper finger | 15g | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 5°C 60°C |
Stroke compensation spring force | 10N 23N | Gripping force per gripper jaw at 6 bar, opening | 27N |
Gripping force per gripper jaw at 6 bar, closing | 13.5N | Mass moment of inertia | 0.06674kgcm2 |
Maximum force on gripper jaw Fz, static | 30N | Maximum torque on gripper jaw, Mx static | 0.5Nm |
Maximum torque on gripper jaw, My static | 0.5Nm | Maximum torque on gripper jaw, Mz static | 0.5Nm |
Product weight | 62g | Type of mounting | With through-hole |
Pneumatic connection | M3 | Note on materials | RoHS-compliant |
Cover cap material | POM | Housing material | Wrought aluminum alloy, anodized |
Gripper jaw material | High-alloy steel | Manufacturer ID | 197565 |
Specifications may be subject to change without notice
