Product Model

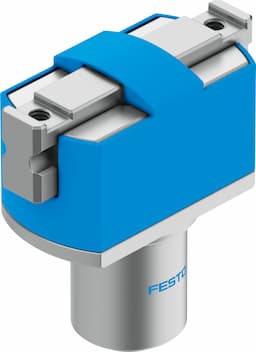

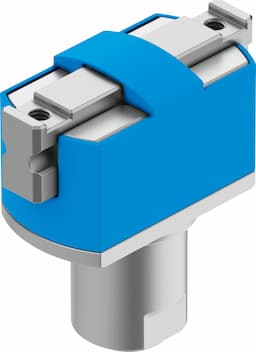

hgpm-12-eo-g8
Selling Points
- 1The HGPM-12-EO-G8 parallel gripper ensures precise and repeatable operations with a stroke per gripper jaw of 3 mm and a repetition accuracy of 0.05 mm.
- 2This gripper operates effectively within a pressure range of 4 to 8 bar, making it suitable for various industrial applications.
- 3With a minimum opening time of 11 ms and a minimum closing time of 3.7 ms at 6 bar, the HGPM-12-EO-G8 is designed for fast and efficient operation.
- 4Built with high-alloy steel for gripper jaws and anodized aluminum alloy for the housing, this gripper offers robust construction and durability.
- 5Featuring a clamped mounting type and M3 pneumatic connection, the HGPM-12-EO-G8 is easy to integrate into existing systems, ensuring seamless operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Stroke per gripper jaw | 3mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.5deg |
Max. gripper jaw backlash Sz | 0.03mm | Rotational symmetry | 0.15mm |
Pneumatic gripper repetition accuracy | 0.05mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mode of operation | Single-acting Open |
Gripper function | Parallel | Gripping force backup | Without |
Structural design | Inclined plane | Position sensing | None |
Symbol | 00991897 | Operating pressure | 4bar 8bar |
Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 11ms |
Min. closing time at 6 bar | 3.7ms | Max. mass per external gripper finger | 15g |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | 5°C 60°C | Gripping force per gripper jaw at 6 bar, opening | 27N |
Gripping force per gripper jaw at 6 bar, closing | 13.5N | Mass moment of inertia | 0.04252kgcm2 |
Maximum force on gripper jaw Fz, static | 30N | Maximum torque on gripper jaw, Mx static | 0.5Nm |
Maximum torque on gripper jaw, My static | 0.5Nm | Maximum torque on gripper jaw, Mz static | 0.5Nm |
Product weight | 41g | Type of mounting | Clamped |
Pneumatic connection | M3 | Note on materials | RoHS-compliant |
Cover cap material | POM | Housing material | Wrought aluminum alloy, anodized |
Gripper jaw material | High-alloy steel | Manufacturer ID | 197566 |
Specifications may be subject to change without notice
