Product Model

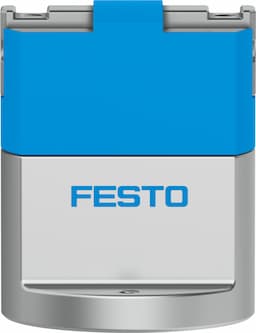

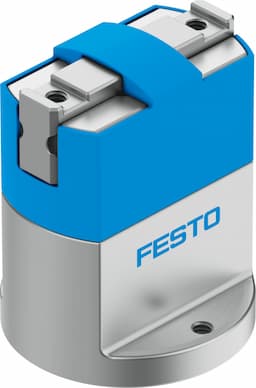

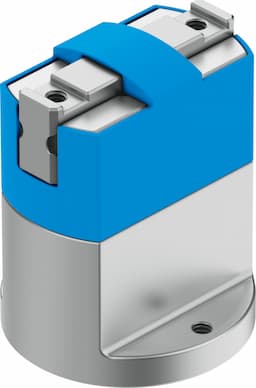

hgpm-12-ez-g9
Selling Points
- 1The HGPM-12-EZ-G9 parallel gripper features a stroke per gripper jaw of 3 mm, ensuring precise handling and control in your automation processes.
- 2With a maximum replacement accuracy of 0.2 mm and a repetition accuracy of 0.05 mm, this gripper ensures high precision and reliability in repetitive tasks.
- 3The gripper operates within a pressure range of 4 to 8 bar, allowing for flexible integration into various pneumatic systems and applications.
- 4The HGPM-12-EZ-G9 is designed with a single-acting, closed gripper function, making it suitable for a wide range of handling tasks, including those requiring precise opening and closing times.
- 5Constructed with high-alloy steel for the gripper jaws and anodized aluminum alloy for the housing, this gripper offers durability and resistance to corrosion, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Stroke per gripper jaw | 3mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.5deg |
Max. gripper jaw backlash Sz | 0.03mm | Pneumatic gripper repetition accuracy | 0.05mm |
Number of gripper jaws | 2 | Actuator system | Pneumatic |
Mode of operation | Single-acting Closed | Gripper function | Parallel |
Gripping force backup | Without | Structural design | Inclined plane |
Position sensing | None | Symbol | 00991898 |
Operating pressure | 4bar 8bar | Max. operating frequency of pneumatic gripper | 4Hz |
Min. opening time at 6 bar | 3ms | Min. closing time at 6 bar | 8.3ms |
Max. mass per external gripper finger | 15g | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 5°C 60°C |
Gripping force per gripper jaw at 6 bar, closing | 35N | Gripping force per gripper jaw at 6 bar, opening | 17.5N |
Mass moment of inertia | 0.07939kgcm2 | Maximum force on gripper jaw Fz, static | 30N |
Maximum torque on gripper jaw, Mx static | 0.5Nm | Maximum torque on gripper jaw, My static | 0.5Nm |
Maximum torque on gripper jaw, Mz static | 0.5Nm | Product weight | 62g |
Type of mounting | With internal thread | Pneumatic connection | M3 |
Note on materials | RoHS-compliant | Cover cap material | POM |
Housing material | Wrought aluminum alloy, anodized | Gripper jaw material | High-alloy steel |
Manufacturer ID | 197570 |
Specifications may be subject to change without notice
