Product Model
hgpp-12-a-g1
Selling Points
- 1The HGPP-12-A-G1 offers a stroke per gripper jaw of 2.5 mm, ensuring high precision in handling tasks with minimal error margin.
- 2Built with a robust design, this gripper features a maximum interchangeability of 0.1 mm and a maximum angular gripper jaw backlash of 0 degrees, ensuring reliable performance.
- 3The gripper operates at pressures between 2 and 8 bar, allowing it to handle a wide range of applications with ease. It also supports double-acting operation and can be used with oil lubrication.
- 4With a minimum opening time of 27 ms and a minimum closing time of 40 ms at 6 bar, the HGPP-12-A-G1 ensures fast cycle times, making it ideal for high-speed applications.
- 5Constructed from durable materials such as wrought aluminum alloy with nickel plating, the gripper offers excellent corrosion resistance and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Stroke per gripper jaw | 2.5mm |
Max. interchangeability | 0.1mm | Max. gripper jaw angular play ax, ay | 0deg |
Max. gripper jaw backlash Sz | 0mm | Rotational symmetry | 0.05mm |
Pneumatic gripper repetition accuracy | 0.02mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mode of operation | Double-acting |
Gripper function | Parallel | Gripping force backup | On opening |
Structural design | Gear rack/pinion | Position sensing | For Hall sensor For inductive proximity sensors |

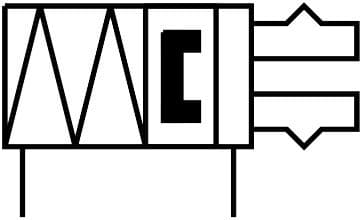

Symbol | 00995947 | Operating pressure | 5bar 8bar |
Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 30ms |
Min. closing time at 6 bar | 70ms | Max. mass per external gripper finger | 100g |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | 5°C 60°C | Mass moment of inertia | 0.76kgcm2 |
Maximum force on gripper jaw Fz, static | 70N | Maximum torque on gripper jaw, Mx static | 3Nm |
Maximum torque on gripper jaw, My static | 3Nm | Maximum torque on gripper jaw, Mz static | 3Nm |
Product weight | 173g | Type of mounting | With internal thread |
Pneumatic connection | M3 | Note on materials | RoHS-compliant |
Cover cap material | POM | Housing material | Wrought aluminum alloy, hard-anodized |
Gripper jaw material | Wrought aluminum alloy, nickel-plated | Manufacturer ID | 187868 |
Specifications may be subject to change without notice
