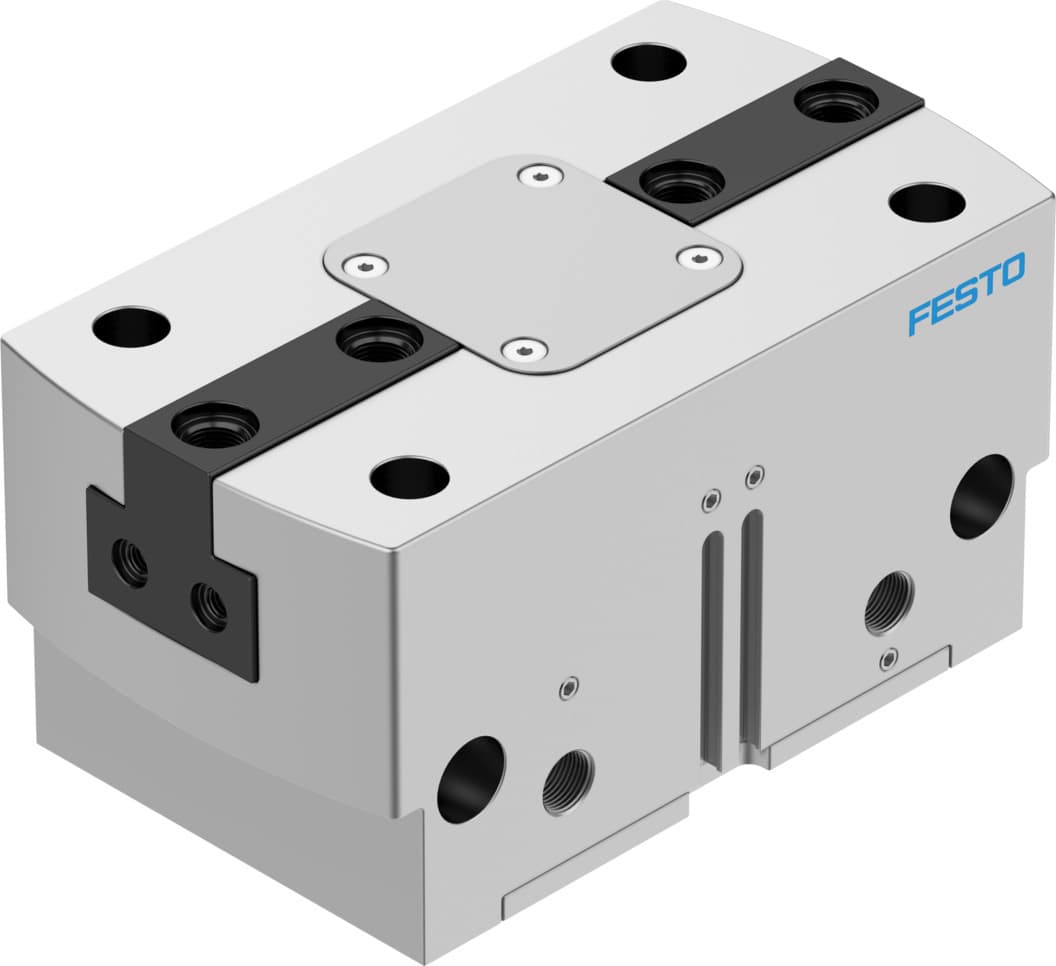

Product Model
hgpt-80-a-b-f
Selling Points
- 1High Precision: Achieve 0.2mm max. replacement accuracy and 0.05mm repetition accuracy.
- 2Double-Acting Operation: Utilize the gripper in both double-acting and single-acting modes.
- 3Robust Construction: Built with hardened steel gripper jaws and anodized aluminum housing.
- 4Flexible Mounting Options: Available in various mounting configurations, including female thread and centring sleeve.
- 5Efficient Performance: Operate at 2Hz max. frequency with 362ms min. opening time and 178ms min. closing time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 80 | Stroke per gripper jaw | 12.5mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.1deg |
Max. gripper jaw backlash Sz | 0.02mm | Rotational symmetry | 0.2mm |
Pneumatic gripper repetition accuracy | 0.05mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mounting position | Any |
Mode of operation | Double-acting | Gripper function | Parallel |
Gripping force backup | Without | Structural design | Inclined plane Positively driven motion sequence |
Position sensing | For proximity sensor | Symbol | 00991894 |
Operating pressure | 3bar 8bar | Operating pressure for sealing air | 0bar 0.5bar |
Max. operating frequency of pneumatic gripper | 2Hz | Min. opening time at 6 bar | 212ms |
Min. closing time at 6 bar | 211ms | Max. mass per external gripper finger | 1830g |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Degree of protection | IP40 | Ambient temperature | 5°C 60°C |
Gripping force per gripper jaw at 6 bar, opening | 3275N | Gripping force per gripper jaw at 6 bar, closing | 3150N |
Mass moment of inertia | 150.515kgcm2 | Maximum force on gripper jaw Fz, static | 7000N |
Maximum torque on gripper jaw, Mx static | 180Nm | Maximum torque on gripper jaw, My static | 220Nm |
Maximum torque on gripper jaw, Mz static | 170Nm | Relubrication interval for guidance elements | 5MioCyc |
Product weight | 4745g | Type of mounting | Optionally: With internal thread and centering sleeve Via through-hole and centering sleeve With through-hole and dowel pin With internal thread and dowel pin |
Sealing air pneumatic connection | M5 | Pneumatic connection | G1/4 |
Note on materials | RoHS-compliant | Cover cap material | High-alloy stainless steel |
Housing material | Aluminum, anodized | Gripper jaw material | Hardened steel |
Manufacturer ID | 560237 |
Specifications may be subject to change without notice
