Product Model
hgwm-08-eo-g6
Selling Points

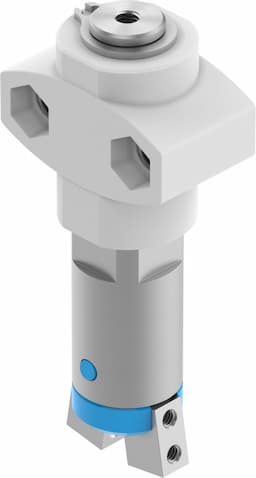

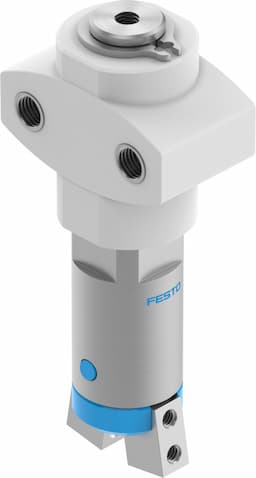

- 1The Festo HGWM-08-EO-G6 angled gripper features angular jaw operation, ensuring precise and reliable gripping in various industrial settings.
- 2With a grip force of 22 N, this gripper provides robust holding power, making it suitable for applications requiring strong clamping.
- 3The gripper has a cylinder bore of 8 mm and includes 2 gripper fingers, offering a compact and efficient design.
- 4The maximum opening angle is 17 degrees, allowing for precise control over the gripping range.
- 5Designed for single-acting operation, the HGWM-08-EO-G6 is a versatile solution for pneumatic automation systems, ensuring smooth and reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 8 | Max. gripper jaw angular play ax, ay | 0.5deg |
Max. gripper jaw backlash Sz | 0.03mm | Max. opening angle | 17deg |
Pneumatic gripper repetition accuracy | 0.02mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mode of operation | Single-acting Open |
Gripper function | Angle | Gripping force backup | Without |
Structural design | Inclined plane | Position sensing | None |
Symbol | 00991897 | Operating pressure | 2bar 8bar |
Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 2.7ms |
Min. closing time at 6 bar | 1.2ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | 5°C 60°C | Stroke compensation spring force | 4N 6N |
Spring return torque | 0.005Nm | Total gripping torque at 6 bar, closing | 22Ncm |
Mass moment of inertia | 70.5kgcm2 | Mass moment of inertia per external gripper finger | 250kgcm2 |
Maximum force on gripper jaw Fz, static | 7N | Maximum torque on gripper jaw, Mx static | 0.2Nm |
Maximum torque on gripper jaw, My static | 0.2Nm | Maximum torque on gripper jaw, Mz static | 0.2Nm |
Max. mass per external gripper finger | 400g | Product weight | 23g |
Type of mounting | With internal thread | Pneumatic connection | M3 |
Note on materials | RoHS-compliant | Cover cap material | POM |
Housing material | High-alloy stainless steel | Gripper jaw material | High-alloy steel |
Manufacturer ID | 185693 |
