Product Model

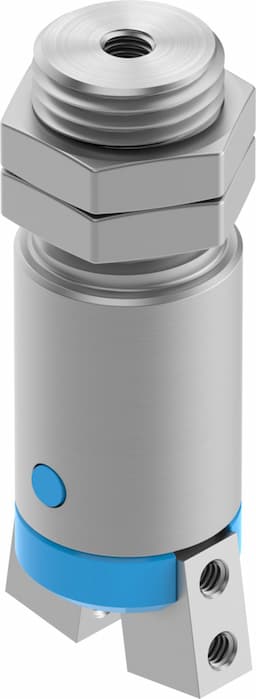

hgwm-08-eo-g7
Selling Points
- 1The HGWM-08-EO-G7 offers a maximum angular gripper jaw play of 0.5 degrees, ensuring precise angular operation in handling applications.
- 2Constructed with high-alloy stainless steel housing and gripper jaws, this angle gripper provides excellent durability and resistance to corrosion.
- 3With a minimum opening time of 2.7 ms and closing time of 1.2 ms at 6 bar, the HGWM-08-EO-G7 ensures fast and efficient operation.
- 4Suitable for a wide range of handling applications, including those requiring angular gripping forces up to 22 N, making it versatile for various industrial needs.
- 5Featuring a simple pneumatic connection and lock nut mounting, the HGWM-08-EO-G7 is easy to install and maintain, reducing downtime and increasing productivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 8 | Max. gripper jaw angular play ax, ay | 0.5deg |
Max. gripper jaw backlash Sz | 0.03mm | Max. opening angle | 17deg |
Pneumatic gripper repetition accuracy | 0.02mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mode of operation | Single-acting Open |
Gripper function | Angle | Gripping force backup | Without |
Structural design | Inclined plane | Position sensing | None |
Symbol | 00991897 | Operating pressure | 2bar 8bar |
Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 2.7ms |
Min. closing time at 6 bar | 1.2ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | 5°C 60°C | Spring return torque | 0.005Nm |
Total gripping torque at 6 bar, closing | 22Ncm | Mass moment of inertia | 31.5kgcm2 |
Mass moment of inertia per external gripper finger | 250kgcm2 | Maximum force on gripper jaw Fz, static | 7N |
Maximum torque on gripper jaw, Mx static | 0.2Nm | Maximum torque on gripper jaw, My static | 0.2Nm |
Maximum torque on gripper jaw, Mz static | 0.2Nm | Max. mass per external gripper finger | 400g |
Product weight | 14g | Type of mounting | With lock nut |
Pneumatic connection | M3 | Note on materials | RoHS-compliant |
Cover cap material | POM | Housing material | High-alloy stainless steel |
Gripper jaw material | High-alloy steel | Manufacturer ID | 185694 |
Specifications may be subject to change without notice
