Product Model

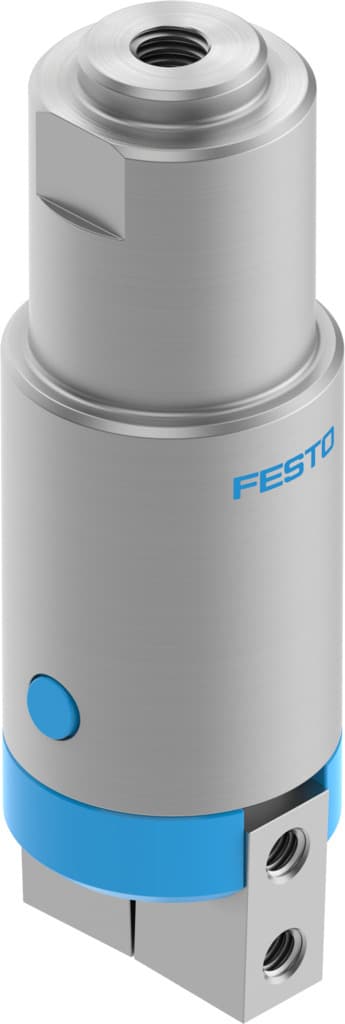

hgwm-08-ez-g8
Selling Points
- 1The Festo HGWM-08-EZ-G8 angle gripper ensures high precision with a maximum angular gripper jaw backlash of 0.5 degrees and a repetition accuracy of ≤0.02 mm.
- 2This gripper operates effectively within a wide pressure range of 2 to 8 bar, making it suitable for various industrial applications.
- 3With a clamped mounting type and a product weight of 13 grams, the HGWM-08-EZ-G8 is designed for compact and efficient use in automation systems.
- 4The gripper features fast operation times, with a minimum opening time of 1 ms and a minimum closing time of 2.5 ms at 6 bar.
- 5Constructed with high-alloyed stainless steel for the housing and gripper jaws, this gripper ensures durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 8 | Max. gripper jaw angular play ax, ay | 0.5deg |
Max. gripper jaw backlash Sz | 0.03mm | Max. opening angle | 14deg |
Pneumatic gripper repetition accuracy | 0.02mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mode of operation | Single-acting Closed |
Gripper function | Angle | Gripping force backup | Without |
Structural design | Inclined plane | Position sensing | None |
Symbol | 00991898 | Operating pressure | 2bar 8bar |
Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 1ms |
Min. closing time at 6 bar | 2.5ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | 5°C 60°C | Spring return torque | 0.006Nm |
Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening | 24Ncm | Mass moment of inertia | 25.2kgcm2 |
Mass moment of inertia per external gripper finger | 250kgcm2 | Maximum force on gripper jaw Fz, static | 7N |
Maximum torque on gripper jaw, Mx static | 0.2Nm | Maximum torque on gripper jaw, My static | 0.2Nm |
Maximum torque on gripper jaw, Mz static | 0.2Nm | Max. mass per external gripper finger | 400g |
Product weight | 13g | Type of mounting | Clamped |
Pneumatic connection | M3 | Note on materials | RoHS-compliant |
Cover cap material | POM | Housing material | High-alloy stainless steel |
Gripper jaw material | High-alloy steel | Manufacturer ID | 185698 |
Specifications may be subject to change without notice
