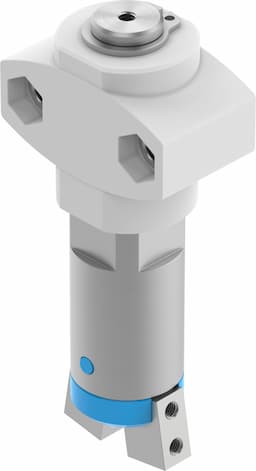

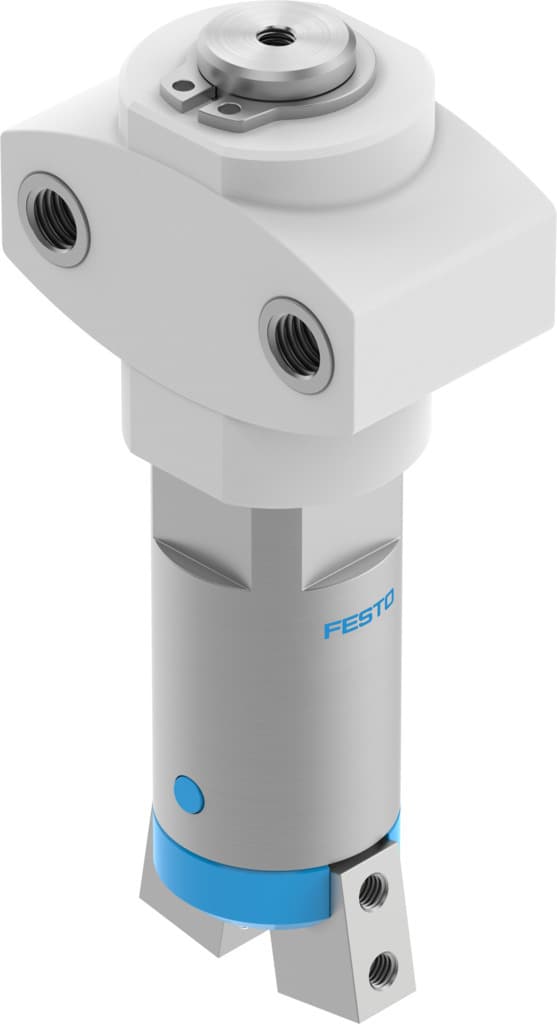

Product Model
hgwm-12-eo-g6
Selling Points
- 1Precise Handling: The Festo HGWM-12-EO-G6 angle gripper offers a maximum angular jaw backlash of 0.5 degrees and a repetition accuracy of ≤0.02 mm, ensuring precise handling in various industrial applications.
- 2High-Performance Operation: With a maximum operating frequency of 4 Hz and operating pressures between 2 to 8 bar, this gripper is designed for high-performance operations in demanding environments.
- 3Compact Design: The HGWM-12-EO-G6 features a compact design with a size of 12 mm, making it suitable for a wide range of applications where space is limited.
- 4Robust Construction: Constructed from high-alloyed stainless steel and PTFE-free materials, this gripper offers robustness and resistance to corrosion, ensuring long-lasting performance.
- 5Easy Integration: The Festo HGWM-12-EO-G6 can be easily integrated into existing systems due to its standardized pneumatic connection (M3) and flange mounting method, simplifying installation and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Max. gripper jaw angular play ax, ay | 0.5deg |
Max. gripper jaw backlash Sz | 0.03mm | Max. opening angle | 18.5deg |
Pneumatic gripper repetition accuracy | 0.02mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mode of operation | Single-acting Open |
Gripper function | Angle | Gripping force backup | Without |
Structural design | Inclined plane | Position sensing | None |
Symbol | 00991897 | Operating pressure | 2bar 8bar |
Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 3.7ms |
Min. closing time at 6 bar | 1.8ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | 5°C 60°C | Stroke compensation spring force | 10N 23N |
Spring return torque | 0.013Nm | Total gripping torque at 6 bar, closing | 64Ncm |
Mass moment of inertia | 421kgcm2 | Mass moment of inertia per external gripper finger | 560kgcm2 |
Maximum force on gripper jaw Fz, static | 20N | Maximum torque on gripper jaw, Mx static | 0.4Nm |
Maximum torque on gripper jaw, My static | 0.4Nm | Maximum torque on gripper jaw, Mz static | 0.4Nm |
Max. mass per external gripper finger | 1000g | Product weight | 75g |
Type of mounting | With internal thread | Pneumatic connection | M3 |
Note on materials | RoHS-compliant | Cover cap material | POM |
Housing material | High-alloy stainless steel | Gripper jaw material | High-alloy steel |
Manufacturer ID | 185699 |
Specifications may be subject to change without notice
