Product Model

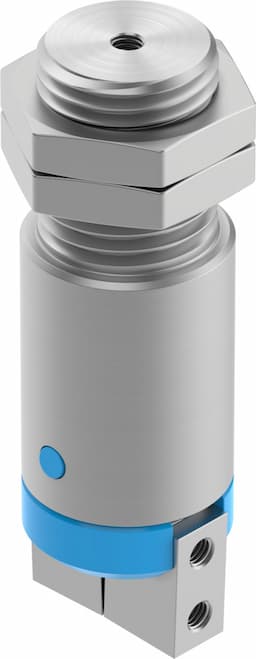

hgwm-12-ez-g7
Selling Points
- 1High Precision and Repeatability: The HGWM-12-EZ-G7 angle gripper offers a maximum angular gripper jaw backlash of 0.5 degrees and a repetition accuracy of ≤0.02 mm, ensuring high precision and consistent performance in handling applications.
- 2Wide Operating Range: This gripper operates effectively within an ambient temperature range of 5°C to 60°C and can handle operating pressures from 2 to 8 bar, making it versatile for various industrial environments.
- 3Fast Operation Times: With a minimum opening time of 1.7 ms and a minimum closing time of 2.8 ms at 6 bar, the HGWM-12-EZ-G7 is designed for fast and efficient operation, ideal for high-speed handling tasks.
- 4Durable Construction: Constructed with high-alloy stainless steel for the housing and high-alloy steel for the gripper jaws, this gripper is built to withstand moderate corrosion stress, ensuring durability in demanding applications.
- 5Easy Mounting and Maintenance: The gripper features a simple mounting method via a lock nut and pneumatic connection M3, making it easy to integrate into existing systems. Additionally, CAD data is available for download in multiple languages, facilitating maintenance and customization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Max. gripper jaw angular play ax, ay | 0.5deg |
Max. gripper jaw backlash Sz | 0.03mm | Max. opening angle | 14deg |
Pneumatic gripper repetition accuracy | 0.02mm | Number of gripper jaws | 2 |
Mode of operation | Single-acting Closed | Gripper function | Angle |
Structural design | Inclined plane | Position sensing | None |
Symbol | 00991898 | Operating pressure | 2bar 8bar |
Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 1.7ms |
Min. closing time at 6 bar | 2.8ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | 5°C 60°C | Spring return torque | 0.015Nm |
Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening | 76Ncm | Mass moment of inertia | 267kgcm2 |
Mass moment of inertia per external gripper finger | 560kgcm2 | Maximum force on gripper jaw Fz, static | 20N |
Maximum torque on gripper jaw, Mx static | 0.4Nm | Maximum torque on gripper jaw, My static | 0.4Nm |
Maximum torque on gripper jaw, Mz static | 0.4Nm | Max. mass per external gripper finger | 1000g |
Product weight | 52g | Type of mounting | With lock nut |
Pneumatic connection | M3 | Cover cap material | POM |
Housing material | High-alloy stainless steel | Gripper jaw material | High-alloy steel |
Manufacturer ID | 185703 |
Specifications may be subject to change without notice
