Product Model

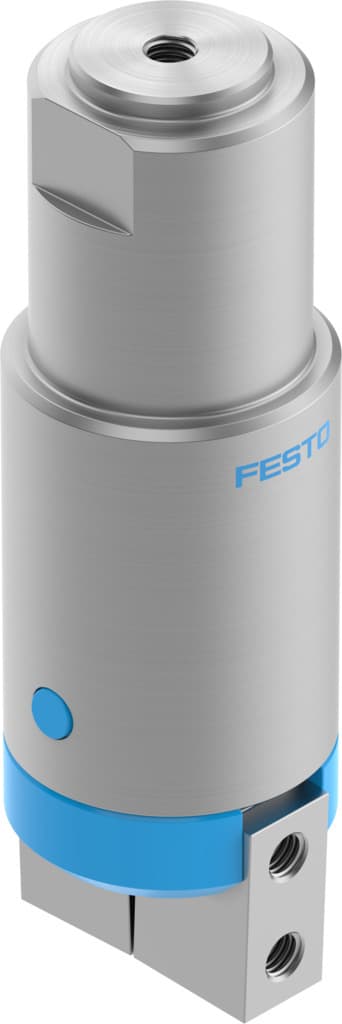

hgwm-12-ez-g8
Selling Points
- 1High Precision: The HGWM-12-EZ-G8 angle gripper offers a maximum angular gripper jaw backlash of 0.5 degrees and a repetition accuracy of 0.02 mm, ensuring precise handling of objects.
- 2Versatile Operation: This gripper is designed for single-acting closed mode operation, making it suitable for various handling applications both internally and externally.
- 3Fast Actuation: With a minimum opening time of 1.7 ms and a minimum closing time of 2.8 ms at 6 bar, the HGWM-12-EZ-G8 provides fast and efficient operation.
- 4Robust Construction: Made from high-alloy stainless steel for the housing and high-alloy steel for the gripper jaws, this gripper ensures durability and resistance to corrosion.
- 5Compressed Air Operation: Designed to operate with compressed air to ISO 8573-1:2010, this gripper is compatible with various industrial air supply systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Max. gripper jaw angular play ax, ay | 0.5deg |
Max. gripper jaw backlash Sz | 0.03mm | Max. opening angle | 14deg |
Pneumatic gripper repetition accuracy | 0.02mm | Number of gripper jaws | 2 |
Mode of operation | Single-acting Closed | Gripper function | Angle |
Structural design | Inclined plane | Position sensing | None |
Symbol | 00991898 | Operating pressure | 2bar 8bar |
Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 1.7ms |
Min. closing time at 6 bar | 2.8ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | 5°C 60°C | Spring return torque | 0.015Nm |
Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening | 76Ncm | Mass moment of inertia | 215.4kgcm2 |
Mass moment of inertia per external gripper finger | 560kgcm2 | Maximum force on gripper jaw Fz, static | 20N |
Maximum torque on gripper jaw, Mx static | 0.4Nm | Maximum torque on gripper jaw, My static | 0.4Nm |
Maximum torque on gripper jaw, Mz static | 0.4Nm | Max. mass per external gripper finger | 1000g |
Product weight | 45g | Type of mounting | Clamped |
Pneumatic connection | M3 | Cover cap material | POM |
Housing material | High-alloy stainless steel | Gripper jaw material | High-alloy steel |
Manufacturer ID | 185704 |
Specifications may be subject to change without notice
