Product Model
lfma-1/2-d-maxi-da

Selling Points

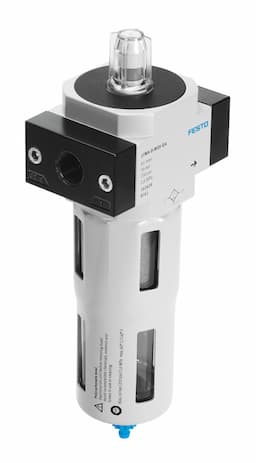

- 1The Festo LFMA-1/2-D-MAXI-DA micro filter offers filtration down to 0.01 µm, ensuring the highest level of air purity for industrial applications.
- 2This filter features a fully automatic condensate drain system, reducing maintenance and downtime.
- 3Equipped with a differential pressure indicator, the LFMA-1/2-D-MAXI-DA provides optical indication of filter contamination, ensuring timely maintenance.
- 4Constructed with a metal design, this filter is built to withstand moderate corrosion stress and is suitable for use in a variety of industrial environments.
- 5Available with various connection options, including push-in L-fittings and different thread sizes, the LFMA-1/2-D-MAXI-DA is versatile and easy to integrate into existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Series | D | Size | Maxi |
Structural design | Fiber filter | Grade of filtration | 0.01μm |
Condensate drain | Manually rotating | Symbol | 00991543 |
Operating pressure | 1bar 16bar | Operating medium | Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:7:2] Inert gas | Max. standard flow rate for air quality class | 1500l/min |
Min. standard flow rate for air quality class | 500l/min | Filter efficiency | 99.9999% |
Bowl guard | Metal bowl guard | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 1.5°C 60°C |
Ambient temperature | -10°C 60°C | Residual oil content | 0.01mg/m3 |
Differential pressure display | Visual display | Type of mounting | Optionally: Line installation With accessories |
Mounting position | Vertical +/- 5° | Pneumatic connection 1 | G1/2 |
Pneumatic connection 2 | G1/2 | Housing material | Die-cast zinc |
Compressed air filter material | Borosilicate fiber | Material of bowl | PC |
Note on materials | RoHS-compliant | Product weight | 1340g |
Manufacturer ID | 532850 |
Specifications may be subject to change without notice
