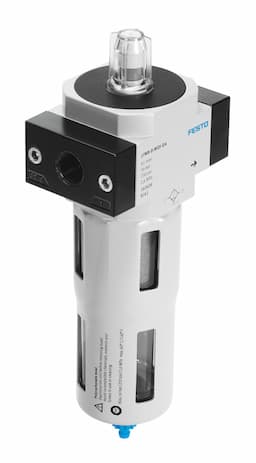

Festo LFMB-3/4-D-MAXI-DA-A Pneumatic Filter | High-Quality Air Filtration

Selling Points

1The Festo LFMB-3/4-D-MAXI-DA-A features a 1 micron filtration grade, ensuring clean and reliable compressed air for your pneumatic systems.
2Equipped with a fully-automatic condensate drain, this filter minimizes downtime and maintenance, keeping your system running smoothly.
3The built-in differential pressure indicator monitors the filter's performance, alerting you when it needs replacement.
4Designed in the Maxi size, this filter is perfect for applications requiring high air flow rates while maintaining precise filtration.
5Backed by a 2-year warranty, the Festo LFMB-3/4-D-MAXI-DA-A provides peace of mind and long-term reliability in your pneumatic system.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Series	D	Size	Mini
Structural design	Fiber filter	Grade of filtration	1μm
Condensate drain	Fully automatic	Symbol	00991544
Operating pressure	2bar 12bar	Operating medium	Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
Air quality class at the output	Compressed air as per ISO 8573-1:2010 [5:7:3] Inert gas	Max. standard flow rate for air quality class	2220l/min
Min. standard flow rate for air quality class	750l/min	Filter efficiency	99.99%
Max. condensate volume	80ml	Bowl guard	Metal bowl guard
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Temperature of medium	1.5°C 60°C	Ambient temperature	-10°C 60°C
Storage temperature	-10°C 60°C	Residual oil content	0.5mg/m3
Differential pressure display	Visual display	Type of mounting	Optionally: Line installation With accessories
Mounting position	Vertical +/- 5°	Pneumatic connection 1	G3/4
Pneumatic connection 2	G3/4	Housing material	Die-cast zinc
Compressed air filter material	Borosilicate fiber	Material of bowl	PC
Note on materials	RoHS-compliant	Product weight	1340g
Manufacturer ID	532835

Specifications may be subject to change without notice
