Product Model

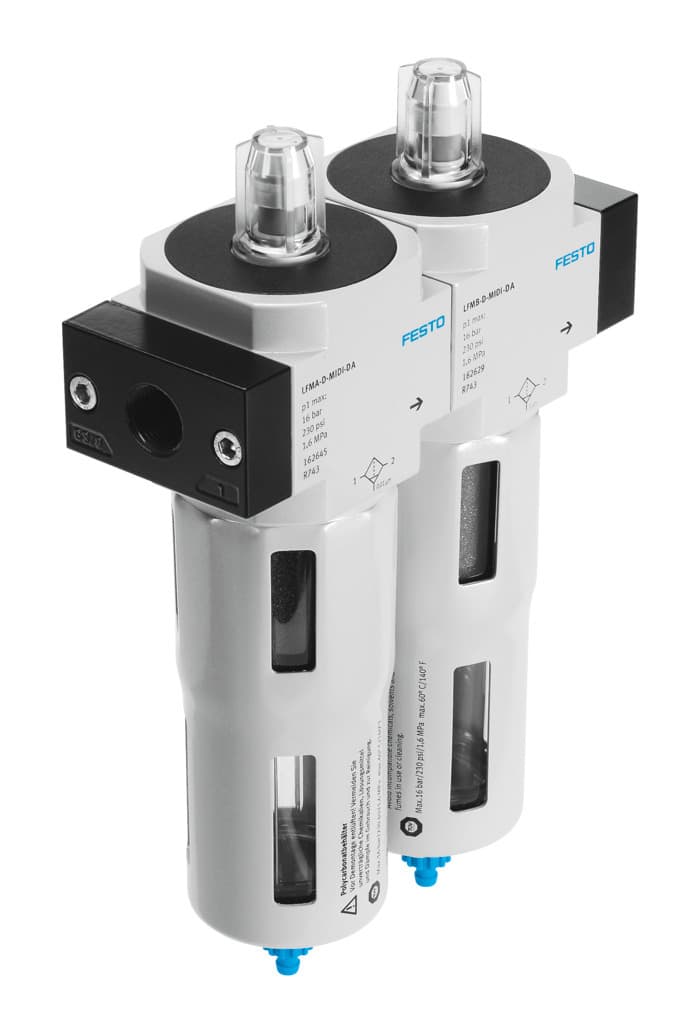

lfmba-1/2-d-midi-da-a
Selling Points
- 1The Festo LFMBA-1/2-D-MIDI-DA-A offers a high filtration efficiency of 99.9999%, ensuring clean and reliable air supply for your applications.
- 2This filter features a 0.01 μm filtration grade, capturing even the smallest contaminants to maintain air purity.
- 3Designed for use with compressed air and inert gases, the LFMBA-1/2-D-MIDI-DA-A meets ISO 8573-1:2010 standards for air purity.
- 4The filter includes a manually rotating condensate drain and a metal bowl guard for easy maintenance and protection.
- 5With a compact Midi size and vertical +/-5° mounting position, the LFMBA-1/2-D-MIDI-DA-A is versatile and easy to integrate into various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Midi | Series | D |
Mounting position | Vertical +/- 5° | Grade of filtration | 0.01μm |
Filter efficiency | 99.9999% | Condensate drain | Fully automatic |
Structural design | Fiber filter | Max. condensate volume | 43ml |
Bowl guard | Metal bowl guard | Symbol | 00991530 |
Operating pressure | 1.5bar 12bar | Operating medium | Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:7:2] Inert gas |
Temperature of medium | 1.5°C 60°C | Residual oil content | 0.01mg/m3 |
Ambient temperature | -10°C 60°C | Product weight | 1429g |
Type of mounting | Line installation With accessories | Pneumatic connection 1 | G1/2 |
Pneumatic connection 2 | G1/2 | Note on materials | RoHS-compliant |
Compressed air filter material | Borosilicate fiber | Housing material | Die-cast zinc |
Material of bowl | PC | Manufacturer ID | 532878 |
Specifications may be subject to change without notice
