Product Model

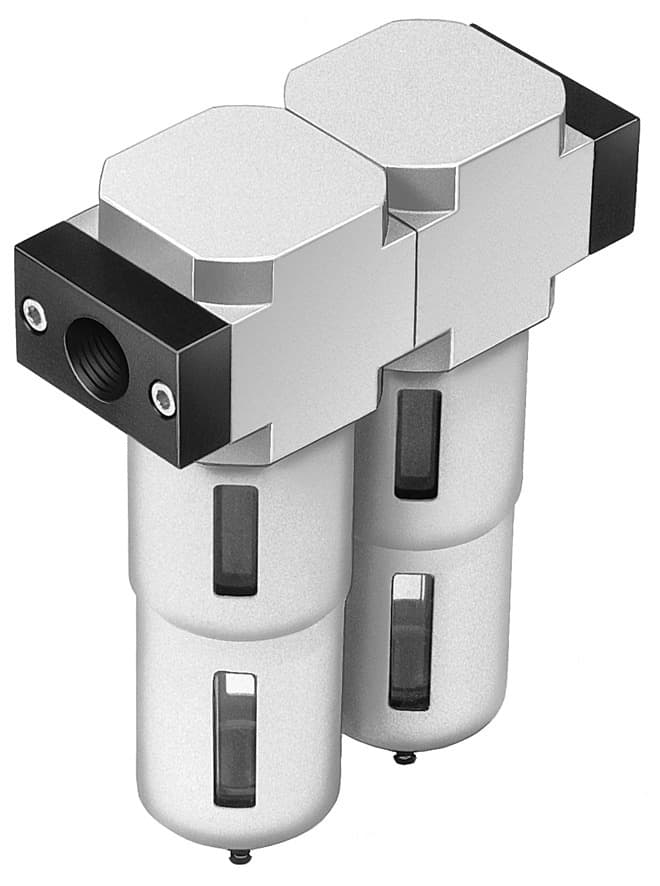

lfmba-1-d-maxi-a
Selling Points
- 1The LFMBA-1-D-MAXI-A air filter offers a filtration size of 0.01μm, ensuring 99.9999% filter efficiency and maintaining pristine air quality in your compressed air system.
- 2Equipped with an automatic condensate drain, this filter minimizes maintenance and ensures continuous operation without manual intervention.
- 3Designed in maxi size, this filter provides ample space for efficient airflow and is ideal for high-flow applications in industrial settings.
- 4The LFMBA-1-D-MAXI-A operates within a pressure range of 1.5 to 16 bar, making it compatible with various pneumatic systems.
- 5Built with high-quality materials, including a zinc die-casting housing and boron silicate fibre filter, this filter ensures durability and long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Maxi | Series | D |
Mounting position | Vertical +/- 5° | Grade of filtration | 0.01μm |
Filter efficiency | 99.9999% | Condensate drain | Fully automatic |
Structural design | Fiber filter | Max. condensate volume | 80ml |
Bowl guard | Metal bowl guard | Symbol | 00991551 |
Operating pressure | 1.5bar 12bar | Operating medium | Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:7:2] Inert gas |
Temperature of medium | 1.5°C 60°C | Residual oil content | 0.01mg/m3 |
Ambient temperature | -10°C 60°C | Product weight | 2400g |
Type of mounting | Line installation With accessories | Pneumatic connection 1 | G1 |
Pneumatic connection 2 | G1 | Note on materials | RoHS-compliant |
Compressed air filter material | Borosilicate fiber | Housing material | Die-cast zinc |
Material of bowl | PC | Manufacturer ID | 162673 |
Specifications may be subject to change without notice
