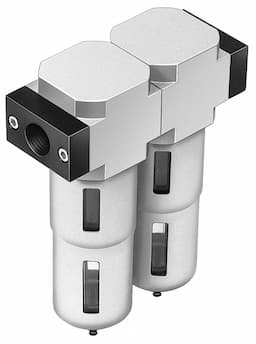

Festo LFMBA-3/8-D-MIDI Fine Filter Combination - High Efficiency Air Filtration

Selling Points

1The Festo LFMBA-3/8-D-MIDI fine filter combination features a 0.01 micron filtration grade, ensuring 99.9999% filter efficiency for clean and reliable air supply in industrial settings.
2This filter cartridge is designed with a metal bowl guard and comes with a differential pressure indicator, making it easy to monitor and maintain optimal filtration performance.
3The LFMBA-3/8-D-MIDI is assembled in a vertical position with a ±5° tolerance, allowing for flexible installation in various pneumatic systems.
4The filter is part of the LFMBA series, which includes other sizes and configurations to meet different air preparation needs, ensuring a comprehensive solution for your pneumatic system.
5The product includes a manual condensate drain, ensuring efficient removal of condensate and maintaining the integrity of the filtration system.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Midi	Series	D
Mounting position	Vertical +/- 5°	Grade of filtration	0.01μm
Filter efficiency	99.9999%	Condensate drain	Manually rotating
Structural design	Fiber filter	Max. condensate volume	43ml
Bowl guard	Metal bowl guard	Symbol	00991740
Operating pressure	1bar 16bar	Operating medium	Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Air quality class at the output	Compressed air as per ISO 8573-1:2010 [1:7:2] Inert gas
Temperature of medium	1.5°C 60°C	Residual oil content	0.01mg/m3
Ambient temperature	-10°C 60°C	Product weight	1300g
Type of mounting	Line installation With accessories	Pneumatic connection 1	G3/8
Pneumatic connection 2	G3/8	Note on materials	RoHS-compliant
Compressed air filter material	Borosilicate fiber	Housing material	Die-cast zinc
Material of bowl	PC	Manufacturer ID	162661

Specifications may be subject to change without notice
