Product Model

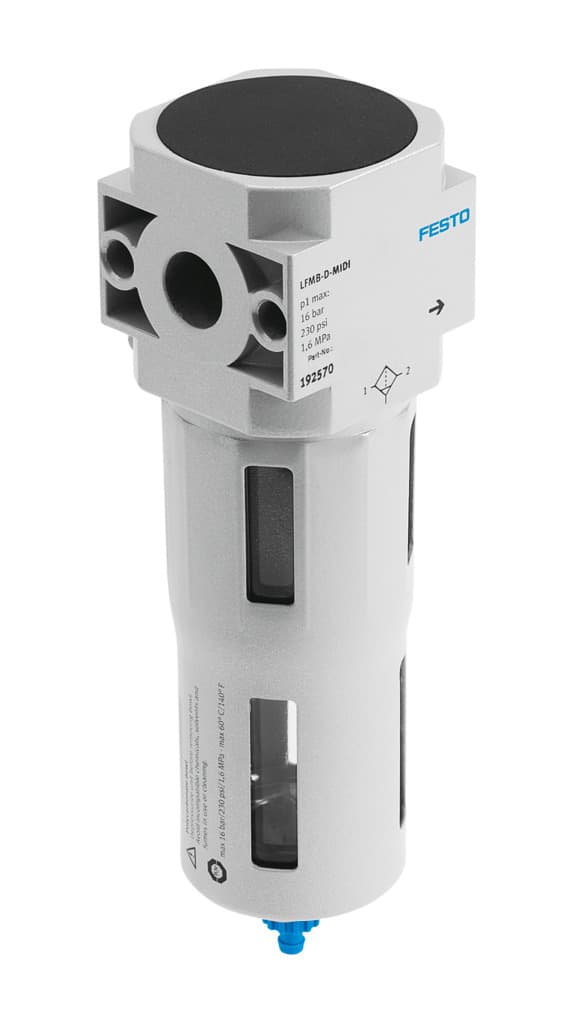

lfmb-d-midi
Selling Points
- 1The Festo LFMB-D-MIDI fine filter offers a 99.99% filter efficiency, ensuring clean and pure compressed air for your industrial applications.
- 2This filter features a fully automatic condensate drain, eliminating the need for manual intervention and ensuring continuous operation.
- 3The LFMB-D-MIDI meets the ISO 8573-1:2010 standards for compressed air quality, ensuring it is suitable for various industrial environments.
- 4Constructed with die-cast zinc housing and borosilicate fiber, this filter is durable and resistant to corrosion, making it ideal for long-term use.
- 5The filter can be mounted either in-line or with accessories, providing flexibility in installation and integration with your existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Series | D | Size | Midi |
Structural design | Fiber filter | Grade of filtration | 1μm |
Condensate drain | Manually rotating | Symbol | 00991519 |
Operating pressure | 1bar 16bar | Operating medium | Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [5:7:3] Inert gas | Filter efficiency | 99.99% |
Max. condensate volume | 43ml | Bowl guard | Metal bowl guard |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | 1.5°C 60°C | Ambient temperature | -10°C 60°C |
Storage temperature | -10°C 60°C | Residual oil content | 0.5mg/m3 |
Type of mounting | Optionally: Line installation With accessories | Mounting position | Vertical +/- 5° |
Pneumatic connection 1 | Sub-base | Pneumatic connection 2 | Sub-base |
Housing material | Die-cast zinc | Compressed air filter material | Borosilicate fiber |
Material of bowl | PC | Note on materials | RoHS-compliant |
Manufacturer ID | 192570 |
Specifications may be subject to change without notice
