Product Model

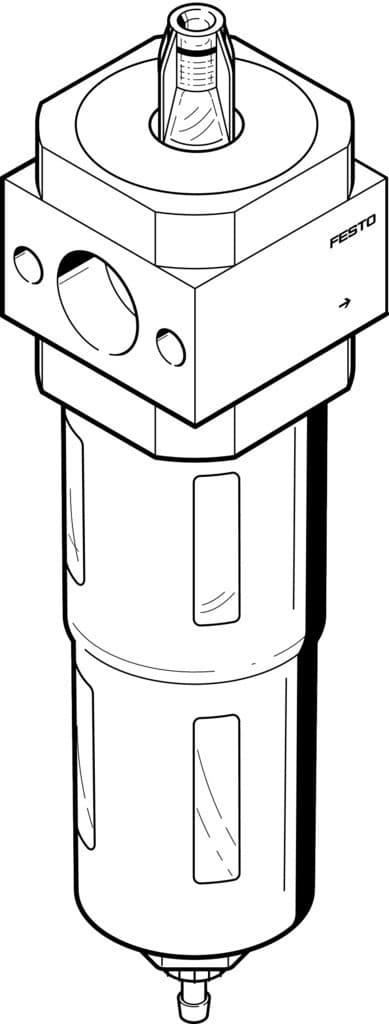

lfmb-d-mini-da-a
Selling Points
- 1The LFMB-D-MINI-DA-A features a 1 µm filtration grade, ensuring 99.99% filter efficiency for clean and pure compressed air.
- 2This fine filter includes a fully automatic condensate drain, minimizing downtime and ensuring continuous operation.
- 3Built with die-cast zinc housing and a borosilicate fiber filter, the LFMB-D-MINI-DA-A offers robust construction and durability.
- 4The filter can be installed either in-line or with accessories, providing flexibility for various mounting positions.
- 5The product is RoHS-compliant and meets VDMA24364-B1/B2-L standards for LABS (PWIS) conformity, ensuring safety and environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Series | D | Size | Mini |
Structural design | Fiber filter | Grade of filtration | 1μm |
Condensate drain | Fully automatic | Symbol | 00991544 |
Operating pressure | 2bar 12bar | Operating medium | Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [5:7:3] Inert gas | Filter efficiency | 99.99% |
Max. condensate volume | 22ml | Bowl guard | Metal bowl guard |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | 1.5°C 60°C | Ambient temperature | -10°C 60°C |
Storage temperature | -10°C 60°C | Residual oil content | 0.5mg/m3 |
Differential pressure display | Visual display | Type of mounting | Optionally: Line installation With accessories |
Mounting position | Vertical +/- 5° | Pneumatic connection 1 | Sub-base |
Pneumatic connection 2 | Sub-base | Housing material | Die-cast zinc |
Compressed air filter material | Borosilicate fiber | Material of bowl | PC |
Note on materials | RoHS-compliant | Product weight | 283g |
Manufacturer ID | 532814 |
Specifications may be subject to change without notice
