Festo LFR-1/2-D-5M-O-MAXI Filter Regulator - High Performance Air Filtration

Selling Points

1The LFR-1/2-D-5M-O-MAXI features a 5 μm filtration grade, ensuring excellent particle separation and clean compressed air.
2Equipped with a manual condensate purge, this filter regulator allows for easy removal of condensate, reducing downtime and maintenance.
3The secure drive rotary button with interlocking ensures that setting values are secured, providing reliable operation.
4Designed for vertical mounting with a +/-5° angle flexibility, this unit offers versatile installation options.
5Made from die-cast zinc, this filter regulator is robust and durable, suitable for various industrial applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Maxi	Series	D
Actuator lock	Rotary knob with detent	Mounting position	Vertical +/- 5°
Grade of filtration	5μm	Condensate drain	Manually rotating
Structural design	Filter regulator without pressure gauge	Max. condensate volume	80ml

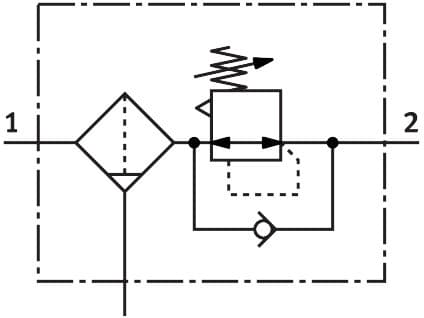

Bowl guard	Metal bowl guard	Symbol	00991590
Pressure gauge	G1/4 prepared	Operating pressure	1bar 16bar
Pressure regulation range	0.5bar 12bar	Max. pressure hysteresis	0.4bar
Standard nominal flow rate	7500l/min	Operating medium	Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Storage temperature	-10°C 60°C
Air quality class at the output	Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas	Temperature of medium	-10°C 60°C
Ambient temperature	-10°C 60°C	Product weight	1370g
Type of mounting	Optionally: Line installation With accessories	Pneumatic connection 1	G1/2
Pneumatic connection 2	G1/2	Note on materials	RoHS-compliant
Housing material	Die-cast zinc	Material of bowl	PC
Manufacturer ID	192617

Specifications may be subject to change without notice
