Product Model

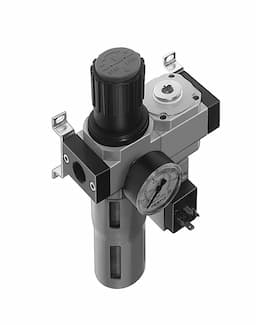

lfr-1/2-d-di-maxi-ke
Selling Points
- 1The Festo LFR-1/2-D-DI-MAXI-KE offers a pressure regulation range of 0.5 to 12 bar, ensuring consistent and reliable air supply for your industrial processes.
- 2Equipped with a 5 μm filtration grade, this filter regulator provides high-quality air preparation by effectively removing contaminants and ensuring clean compressed air.
- 3The LFR-1/2-D-DI-MAXI-KE features a fully automatic condensate drain, eliminating the need for manual intervention and ensuring continuous operation without interruptions.
- 4Built with die-cast zinc housing and PC material for the bowl, this filter regulator is durable and resistant to corrosion, making it suitable for demanding industrial environments.
- 5The LFR-1/2-D-DI-MAXI-KE can be mounted either in-line or with accessories, offering flexibility in installation and integration into your existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Maxi | Series | D |
Actuator lock | Rotary knob with detent | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Manually rotating |

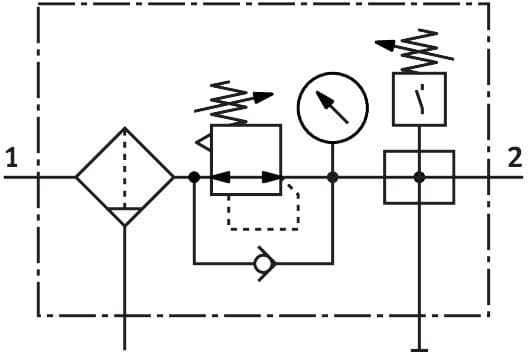

Structural design | Branching module Pressure switch Filter regulator with pressure gauge | Max. condensate volume | 43ml |
Bowl guard | Metal bowl guard | Symbol | 00991772 |
Pressure gauge | with pressure gauge | Operating pressure | 14.5psi 232psi |
Pressure regulation range MPa | 0.05MPa 1.2MPa | Pressure regulation range | 0.5bar 12bar |
Pressure regulation range psi | 7.25psi 174psi | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 2600g |
Type of mounting | Optionally: Line installation With accessories | Pneumatic connection 1 | G1/2 |
Pneumatic connection 2 | G1/2 | Housing material | Die-cast zinc |
Material of bowl | PC | Manufacturer ID | 192444 |
Specifications may be subject to change without notice
