Product Model

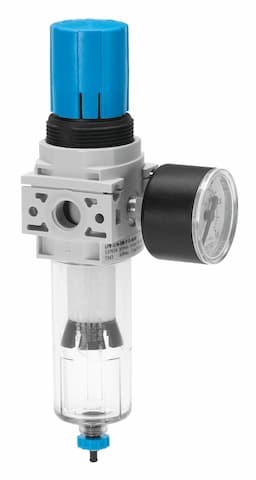

lfr-1/4-db-7-5m-mini
Selling Points
- 1The Festo LFR-1/4-DB-7-5M-MINI filter regulator ensures high-quality compressed air by filtering out particles as small as 5 µm, making it suitable for a wide range of industrial applications.
- 2This mini filter regulator features a compact design with a width of 44 mm, making it easy to integrate into tight spaces and reducing installation complexity.
- 3Equipped with a rotary knob with detent, the LFR-1/4-DB-7-5M-MINI provides secure and precise actuator lock, ensuring reliable operation and minimizing the risk of accidental adjustments.
- 4The filter regulator can be mounted at a vertical angle of +/-5°, offering flexibility in installation and allowing for optimal performance in various orientations.
- 5The condensate drain feature ensures efficient removal of condensate, maintaining the quality of the compressed air and preventing system downtime due to moisture accumulation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Width | 44mm |
Series | DB | Actuator lock | Rotary knob with detent |
Mounting position | Vertical +/- 5° | Grade of filtration | 5μm |
Condensate drain | Manually rotating | Structural design | Filter regulator with pressure gauge |
Controller function | With secondary exhausting With return flow function | Symbol | 00991589 |
Pressure gauge | with pressure gauge | Operating pressure | 1.5bar 10bar |
Pressure regulation range | 0.5bar 7bar | Max. pressure hysteresis | 0.5bar |
Standard nominal flow rate | 1000l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas | Temperature of medium | -5°C 50°C |
Ambient temperature | -5°C 50°C | Product weight | 200g |
Type of mounting | Optionally: Line installation With through-hole With mounting bracket | Pressure gauge connection | G1/8 |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
Note on materials | RoHS-compliant | Seals material | NBR |
Rotary knob material | POM | Compressed air filter material | PE |
Housing material | PA-reinforced | Material of bowl | PC |
Manufacturer ID | 539689 |
Specifications may be subject to change without notice
