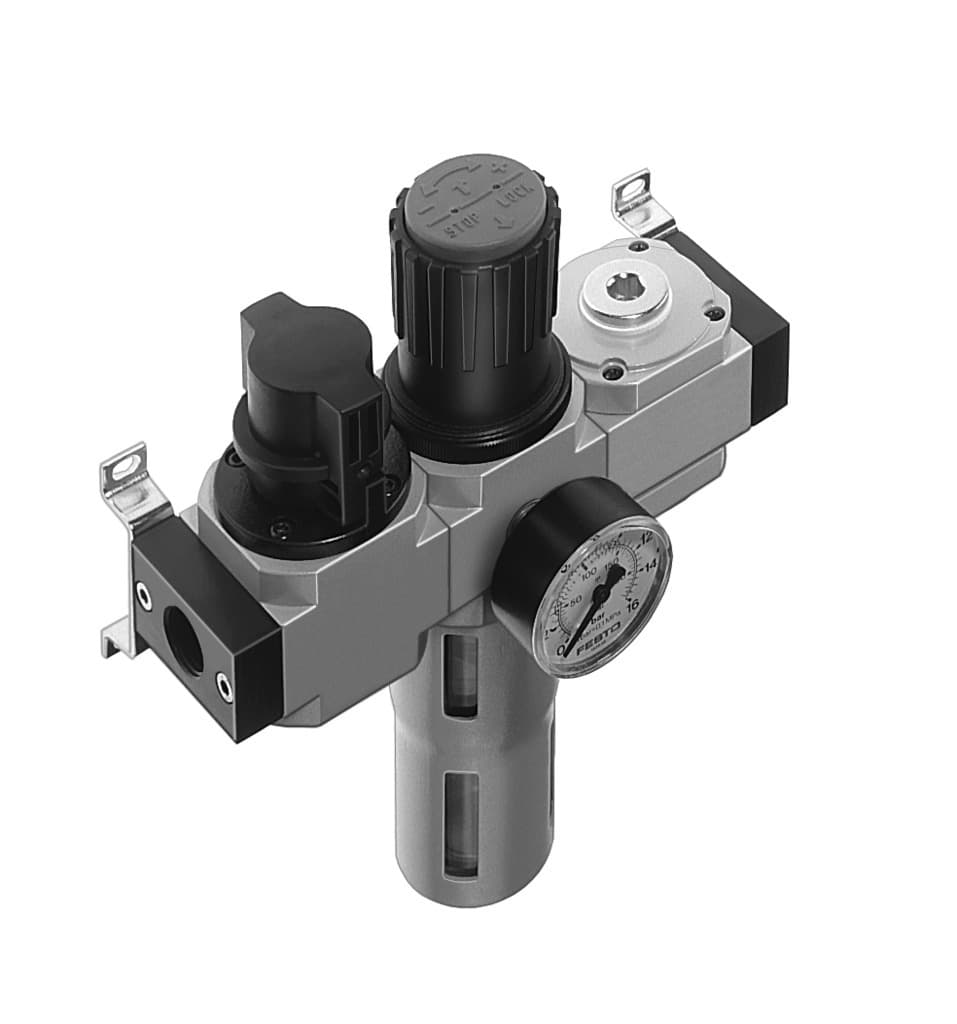

Product Model
lfr-1/4-d-midi-kb
Selling Points
- 1The Festo LFR-1/4-D-MIDI-KB offers superior filtration with a 40 microns filter, ensuring clean and reliable compressed air for your industrial applications.
- 2This pneumatic air preparation unit features a midi size design, making it compact and versatile for various installation types, including in-line and with accessories.
- 3The LFR-1/4-D-MIDI-KB includes a rotary knob with detent actuator lock and a manually rotating condensate drain, enhancing user convenience and efficiency.
- 4With a maximum condensate volume of 43 ml and a metal bowl guard, this unit provides effective condensate management and durability.
- 5The LFR-1/4-D-MIDI-KB is designed to operate within a wide temperature range (-10°C to 60°C) and supports compressed air to ISO 8573-1:2010 [7:8:4] air purity class at output.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Midi | Series | D |
Actuator lock | Rotary knob with detent | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Manually rotating |
Structural design | Branching module Shut off valve Filter regulator with pressure gauge | Max. condensate volume | 43ml |
Bowl guard | Metal bowl guard | Symbol | 00991522 |
Pressure gauge | with pressure gauge | Operating pressure | 14.5psi 232psi |
Pressure regulation range MPa | 0.05MPa 1.2MPa | Pressure regulation range | 0.5bar 12bar |
Pressure regulation range psi | 7.25psi 174psi | Max. pressure hysteresis | 3.625psi |
Standard nominal flow rate | 1720l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 2200g |
Type of mounting | Optionally: Line installation With accessories | Pneumatic connection 1 | G1/4 |
Pneumatic connection 2 | G? | Housing material | Die-cast zinc |
Material of bowl | PC | Manufacturer ID | 185723 |
Specifications may be subject to change without notice
