Product Model
lfr-1-d-7-o-maxi-a
Selling Points

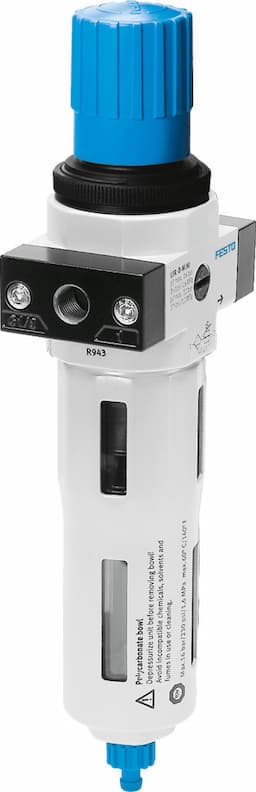

- 1The Festo LFR-1-D-7-O-MAXI-A filter regulator provides high-quality air filtration, ensuring compressed air meets ISO 8573-1:2010 standards for purity and cleanliness.
- 2Built with a metal bowl guard and die-cast zinc housing, this filter regulator is durable and resistant to moderate corrosion stress, making it suitable for various industrial environments.
- 3Equipped with an automatic condensate drain, the LFR-1-D-7-O-MAXI-A minimizes downtime and maintenance, ensuring continuous operation and optimal performance.
- 4The directly-controlled pressure regulator allows for precise pressure regulation, ensuring that the output pressure remains within the specified range of 0.5 to 7 bar.
- 5Designed for in-line installation, this filter regulator offers flexibility in mounting positions, including vertical +/-5°, making it easy to integrate into various pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Maxi | Series | D |
Actuator lock | Rotary knob with detent | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Fully automatic |
Structural design | Filter regulator without pressure gauge | Max. condensate volume | 80ml |

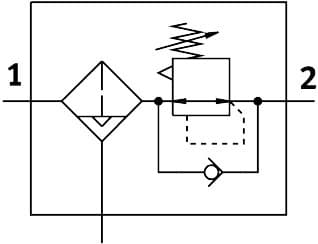

Bowl guard | Metal bowl guard | Symbol | 00991588 |
Pressure gauge | G1/4 prepared | Operating pressure | 2bar 12bar |
Pressure regulation range | 0.5bar 7bar | Max. pressure hysteresis | 0.4bar |
Standard nominal flow rate | 11000l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:9:-] Inert gas |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas |
Temperature of medium | 5°C 60°C | Ambient temperature | 5°C 60°C |
Product weight | 1470g | Type of mounting | Optionally: Line installation With accessories |
Pneumatic connection 1 | G1 | Pneumatic connection 2 | G1 |
Note on materials | RoHS-compliant | Housing material | Die-cast zinc |
Material of bowl | PC | Manufacturer ID | 192609 |
Specifications may be subject to change without notice
