Product Model
lfr-3/8-d-5m-o-midi
Selling Points
- 1The Festo LFR-3/8-D-5M-O-MIDI filter regulator offers a 5-micron filtration grade, ensuring high-quality air preparation for your industrial applications.
- 2This filter regulator features a 3/8-inch pneumatic connection, providing flexibility and ease of integration into your existing systems.
- 3The LFR-3/8-D-5M-O-MIDI is designed for reliable performance, with a standard nominal flow rate of 1,600 to 2,100 liters per minute.
- 4This product is part of Festo's comprehensive range of air preparation solutions, ensuring you have everything you need for efficient and reliable compressed air management.
- 5The filter regulator is built to withstand various operating conditions, including ambient temperature and medium temperature, ensuring long-term reliability and service life.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Midi | Series | D |
Actuator lock | Rotary knob with detent | Mounting position | Vertical +/- 5° |
Grade of filtration | 5μm | Condensate drain | Manually rotating |
Structural design | Filter regulator without pressure gauge | Max. condensate volume | 43ml |

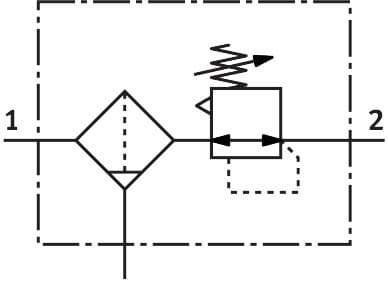

Bowl guard | Metal bowl guard | Symbol | 00991586 |
Pressure gauge | G1/4 prepared | Operating pressure | 1bar 16bar |
Pressure regulation range | 0.5bar 12bar | Max. pressure hysteresis | 0.2bar |
Standard nominal flow rate | 2400l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 900g |
Type of mounting | Optionally: Line installation With accessories | Pneumatic connection 1 | G3/8 |
Pneumatic connection 2 | G3/8 | Note on materials | RoHS-compliant |
Housing material | Die-cast zinc | Material of bowl | PC |
Manufacturer ID | 192614 |
Specifications may be subject to change without notice
