Product Model
lfr-3/8-d-5m-o-mini-a
Selling Points
- 1Efficient Air Preparation: The Festo LFR-3/8-D-5M-O-MINI-A filter regulator ensures high-quality compressed air by filtering out particles down to 5 μm, making it suitable for a wide range of industrial applications.
- 2Fully Automatic Condensate Drain: This filter regulator features a fully automatic condensate drain, eliminating the need for manual intervention and ensuring continuous operation without interruptions.
- 3Compact Design: With a mini size and lightweight design, the LFR-3/8-D-5M-O-MINI-A is perfect for space-constrained environments, offering flexibility in installation.
- 4Pressure Regulation Range: The regulator can handle operating pressures from 2 to 12 bar, providing a versatile solution for various pneumatic systems.
- 5Reliability and Durability: Built with high-quality components, this filter regulator is designed to withstand ambient temperatures and medium temperatures, ensuring reliable operation over millions of cycles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Series | D |
Actuator lock | Rotary knob with detent | Mounting position | Vertical +/- 5° |
Grade of filtration | 5μm | Condensate drain | Fully automatic |
Structural design | Filter regulator without pressure gauge | Max. condensate volume | 22ml |

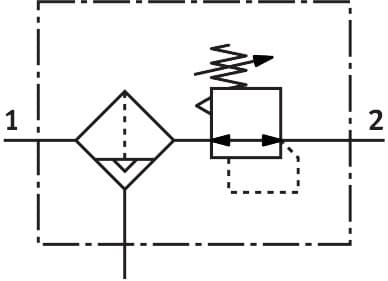

Bowl guard | Metal bowl guard | Symbol | 00991584 |
Pressure gauge | G1/8 prepared | Operating pressure | 2bar 12bar |
Pressure regulation range | 0.5bar 12bar | Max. pressure hysteresis | 0.2bar |
Standard nominal flow rate | 1350l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:9:-] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas | Temperature of medium | 5°C 60°C |
Ambient temperature | 5°C 60°C | Product weight | 460g |
Type of mounting | Optionally: Line installation With accessories | Pneumatic connection 1 | G3/8 |
Pneumatic connection 2 | G3/8 | Note on materials | RoHS-compliant |
Housing material | Die-cast zinc | Material of bowl | PC |
Manufacturer ID | 192622 |
Specifications may be subject to change without notice
