Product Model
lfr-3/8-d-midi
Selling Points

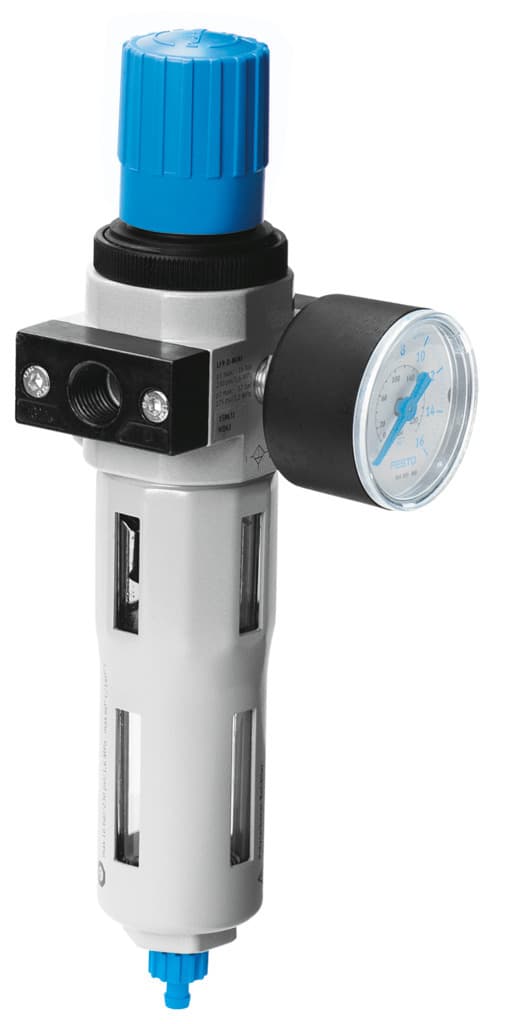

- 1The Festo LFR-3/8-D-MIDI filter regulator ensures high-quality air preparation with a 40μm filter, minimizing contaminants and ensuring reliable pneumatic system performance.
- 2Equipped with a manual condensate drain, this filter regulator allows for easy maintenance and efficient condensate removal, extending the lifespan of your pneumatic system.
- 3The LFR-3/8-D-MIDI features a compact design, making it ideal for space-constrained applications while maintaining its functionality and reliability.
- 4This filter regulator offers a pressure regulation range of 0.5 to 12 bar, providing flexibility in various pneumatic system applications.
- 5Built with durable materials, the LFR-3/8-D-MIDI ensures long service life and withstands maximum vibration and shock loads, ensuring consistent performance over time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Midi | Series | D |
Actuator lock | Rotary knob with detent | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Manually rotating |
Structural design | Filter regulator with pressure gauge | Max. condensate volume | 43ml |
Bowl guard | Metal bowl guard | Symbol | 00991585 |
Pressure gauge | with pressure gauge | Operating pressure | 1bar 16bar |
Pressure regulation range | 0.5bar 12bar | Max. pressure hysteresis | 0.2bar |
Standard nominal flow rate | 3100l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 920g |
Type of mounting | Optionally: Line installation With accessories | Pneumatic connection 1 | G3/8 |
Pneumatic connection 2 | G3/8 | Note on materials | RoHS-compliant |
Housing material | Die-cast zinc | Material of bowl | PC |
Manufacturer ID | 159582 |
Specifications may be subject to change without notice
