Product Model

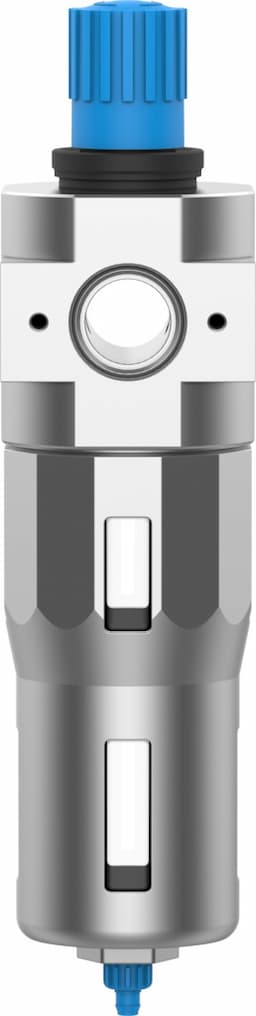

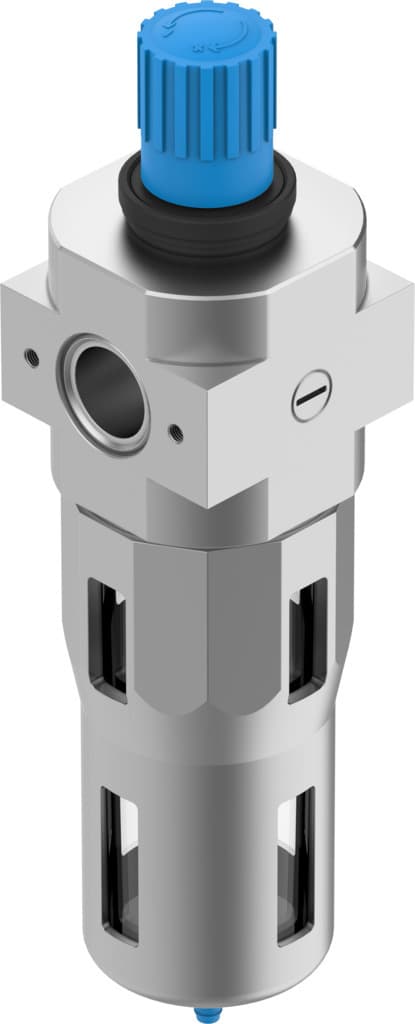

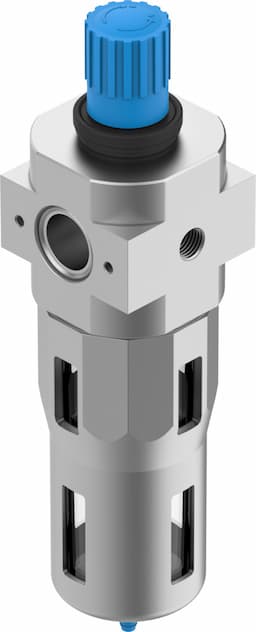

lfr-d-maxi-a
Selling Points
- 1The LFR-D-MAXI-A features a corrosion resistance class of CRC 3, ensuring it can withstand moderate corrosive conditions, making it ideal for outdoor use.
- 2With a grade of filtration of 40 μm, this filter regulator provides reliable air quality, ensuring your equipment operates smoothly and efficiently.
- 3The LFR-D-MAXI-A offers a pressure regulation range of 0.5 to 7 bar, allowing for precise control over your compressed air system.
- 4Equipped with a rotary knob with detent, the actuator lock ensures easy and secure operation, reducing the risk of accidental changes in pressure settings.
- 5The fully automatic condensate drain feature with a pressure gauge ensures efficient removal of condensate, maintaining optimal system performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Maxi | Series | D |
Actuator lock | Rotary knob with detent | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Fully automatic |
Structural design | Filter regulator without pressure gauge | Max. condensate volume | 79.968ml |
Bowl guard | Metal bowl guard | Symbol | 00991587 |
Pressure gauge | G1/4 prepared | Operating pressure | 1.931bar 12.411bar |
Pressure regulation range | 0.476bar 12.411bar | Max. pressure hysteresis | 0.414bar |
Standard nominal flow rate | 43156.78l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:9:-] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas | Temperature of medium | 5°C 60°C |
Ambient temperature | 5°C 60°C | Product weight | 1289.925g |
Type of mounting | Optionally: Line installation With accessories | Note on materials | RoHS-compliant |
Housing material | Die-cast zinc | Material of bowl | PC |
Manufacturer ID | 546438 |
Specifications may be subject to change without notice
