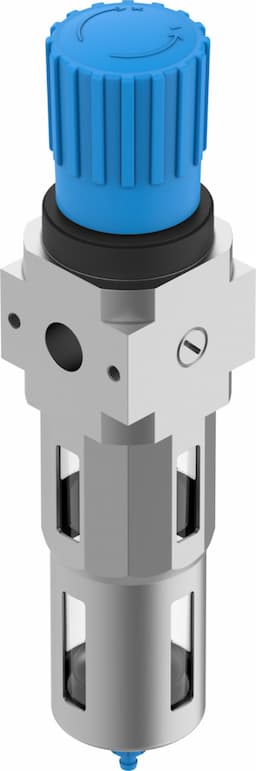

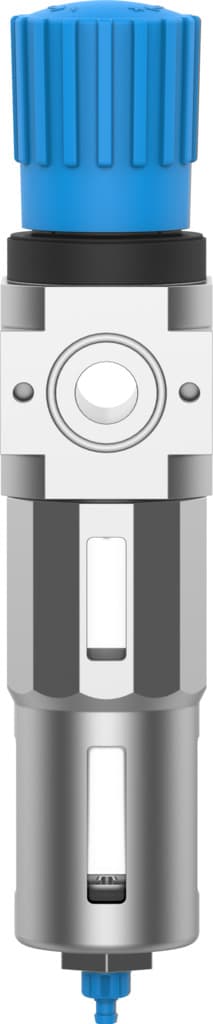

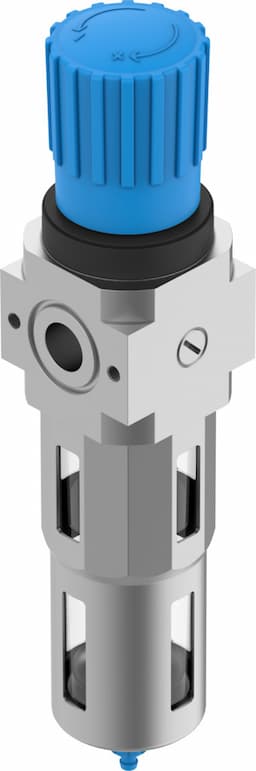

Festo LFR-D-MIDI Filter Regulator: High-Flow, Automatic Drain, Compact Design

Selling Points

1The LFR-D-MIDI filter regulator ensures minimal pressure loss, maintaining peak performance in pneumatic systems.
2Eliminate manual intervention with the automatic condensate drain, saving time and maintenance resources.
3Save valuable space with the compact design of the LFR-D-MIDI, perfect for a wide range of pneumatic applications.
4Remove harmful contaminants like water vapor and dust particles to protect your equipment from wear and tear.
5Features NPT threads for easy installation, making it suitable for a variety of compressor sizes and applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Midi	Series	D
Actuator lock	Rotary knob with detent	Mounting position	Vertical +/- 5°
Grade of filtration	40μm	Condensate drain	Manually rotating
Structural design	Filter regulator without pressure gauge	Max. condensate volume	42.983ml
Bowl guard	Metal bowl guard	Pressure gauge	G1/4 prepared
Operating pressure	0.951bar 16.547bar	Pressure regulation range	0.476bar 12.411bar
Max. pressure hysteresis	0.207bar	Standard nominal flow rate	13792.37l/min
Operating medium	Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-10°C 60°C	Air quality class at the output	Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
Temperature of medium	-10°C 60°C	Ambient temperature	-10°C 60°C
Product weight	912.87g	Type of mounting	Optionally: Line installation With accessories
Note on materials	RoHS-compliant	Housing material	Die-cast zinc
Material of bowl	PC	Manufacturer ID	546425

Specifications may be subject to change without notice
