Product Model

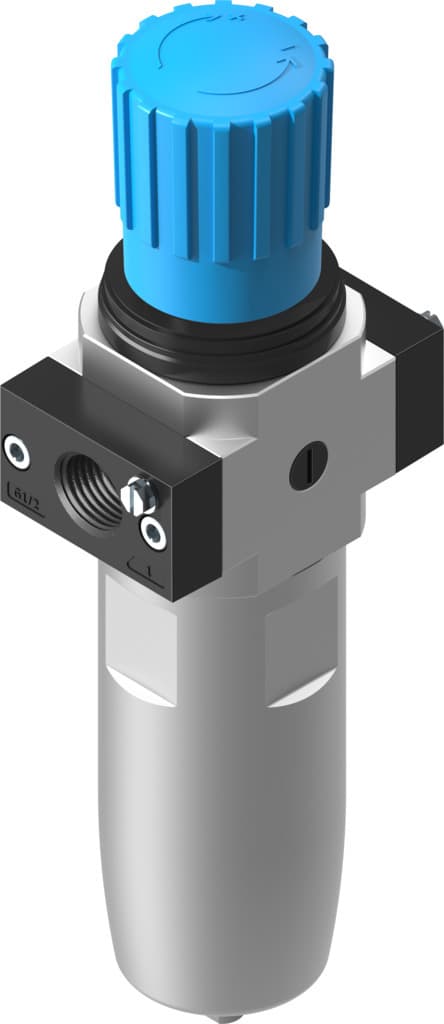

lfr-n1/2-d-16-o-midi-t18-ex4
Selling Points
- 1The LFR-N1/2-D-16-O-MIDI-T18-EX4 filter regulator features a 5 µm filtration grade, ensuring high-quality air supply in industrial settings.
- 2This product is designed with a rotary knob with detent for precise actuator lock, ensuring reliable operation and easy maintenance.
- 3The filter regulator is equipped with a condensate drain that can be manually rotated, allowing for efficient condensate removal without pressure gauge.
- 4Certified to ATEX and UKEX standards, this filter regulator provides explosion protection in hazardous environments, meeting stringent safety requirements.
- 5With a standard nominal flow rate of 1665 l/min and operating pressure range of 0.1 MPa to 2 MPa, it is suitable for a variety of industrial applications requiring precise pressure regulation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Midi | Series | D |
Actuator lock | Rotary knob with detent | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Manually rotating |
Structural design | Filter regulator without pressure gauge | Max. condensate volume | 42ml |
Bowl guard | Integrated as metal bowl guard | Symbol | 00991586 |
Pressure gauge | G1/4 prepared | Operating pressure | 1bar 20bar |
Pressure regulation range | 0.5bar 16bar | Max. pressure hysteresis | 2.9psi |
Standard nominal flow rate | 1970l/min | CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
UKCA marking (see declaration of conformity) | acc. to UK EX instructions | Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) |
Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) | ATEX category gas | II 2G |
ATEX category for dust | II 2D | Type of ignition protection for gas | Ex h IIC T6 Gb X |
Type of (ignition) protection for dust | Ex h IIIC T85°C Db X | Explosive ambient temperature | -20°C <= Ta <= +80°C |
Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Storage temperature | -20°C 80°C | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas |
Temperature of medium | -20°C 80°C | Ambient temperature | -20°C 80°C |
Product weight | 1400g | Type of mounting | Optionally: Line installation With accessories |
Pneumatic connection 1 | 1/2 NPT | Pneumatic connection 2 | 1/2 NPT |
Note on materials | RoHS-compliant | Housing material | Die-cast zinc |
Material of bowl | Wrought aluminum alloy | Manufacturer ID | 4772779 |
Specifications may be subject to change without notice
