Product Model

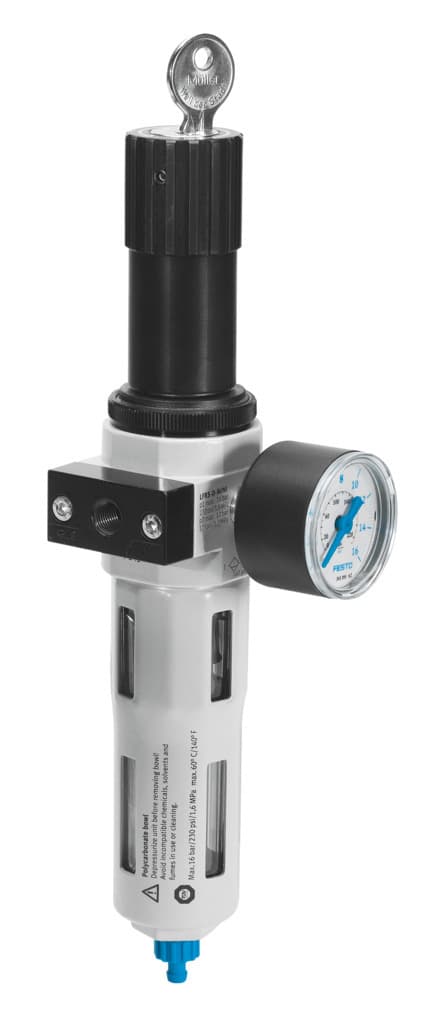

lfrs-1/2-d-midi
Selling Points
- 1The LFRS-1/2-D-MIDI filter regulator features a 40µm filtration level, ensuring high-quality air filtration and minimizing contaminants in your compressed air system.
- 2Equipped with a pressure gauge, this filter regulator allows for adjustable output pressure within the range of 0.5 to 12 bar, meeting various operational requirements.
- 3The MIDI series has a grid dimension of 55 mm (without connecting plates), making it compact and suitable for a variety of installation configurations.
- 4The LFRS-1/2-D-MIDI includes a condensate drain feature, ensuring efficient separation and removal of condensate for optimal system performance.
- 5Built with high-quality materials, this filter regulator is designed to withstand ambient temperatures and medium temperatures up to 60°C, ensuring reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Midi | Series | D |
Actuator lock | Rotary knob with integrated lock | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Manually rotating |
Structural design | Filter regulator with pressure gauge | Max. condensate volume | 43ml |
Bowl guard | Metal bowl guard | Symbol | 00991585 |
Pressure gauge | with pressure gauge | Operating pressure | 1bar 16bar |
Pressure regulation range | 0.5bar 12bar | Max. pressure hysteresis | 0.2bar |
Standard nominal flow rate | 3400l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 1160g |
Type of mounting | Optionally: Line installation With accessories | Pneumatic connection 1 | G1/2 |
Pneumatic connection 2 | G1/2 | Note on materials | RoHS-compliant |
Housing material | Die-cast zinc | Material of bowl | PC |
Manufacturer ID | 194756 |
Specifications may be subject to change without notice
