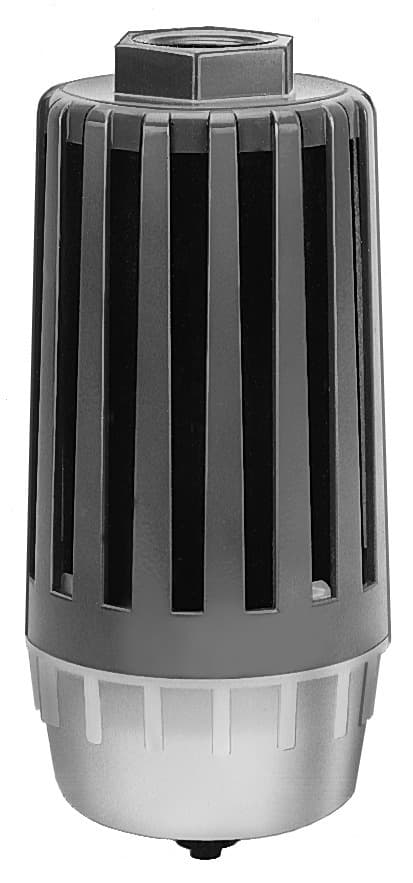

Product Model
lfu-1
Selling Points
- 1The LFU-1 Filter Silencer offers a flow rate to atmosphere of 12,500 liters per minute, ensuring efficient air filtration in demanding industrial settings.
- 2With a corrosion resistance class of CRC1, the LFU-1 is designed to withstand low corrosion stress, making it suitable for a wide range of industrial environments.
- 3The filter silencer can be mounted using a screw-in mechanism, providing flexibility in installation and integration with existing systems.
- 4The LFU-1 meets LABS (PWIS) conformity and VDMA24364-B1/B2-L standards, ensuring compliance with industry regulations and quality standards.
- 5Available in various sizes, including G1/4, the LFU-1 is designed to be compact and easy to integrate into compressed air preparation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00991531 | Inlet pressure 1 | 0bar 16bar |
Inlet pressure 1 MPa | 0MPa 1.6MPa | Inlet pressure 1 psi | 0psi 232psi |
Flow rate with respect to atmosphere | 12500l/min | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Type of mounting | Screw-in |
Pneumatic connection | G1 | Note on materials | RoHS-compliant |
Manufacturer ID | 10495 |
Specifications may be subject to change without notice
