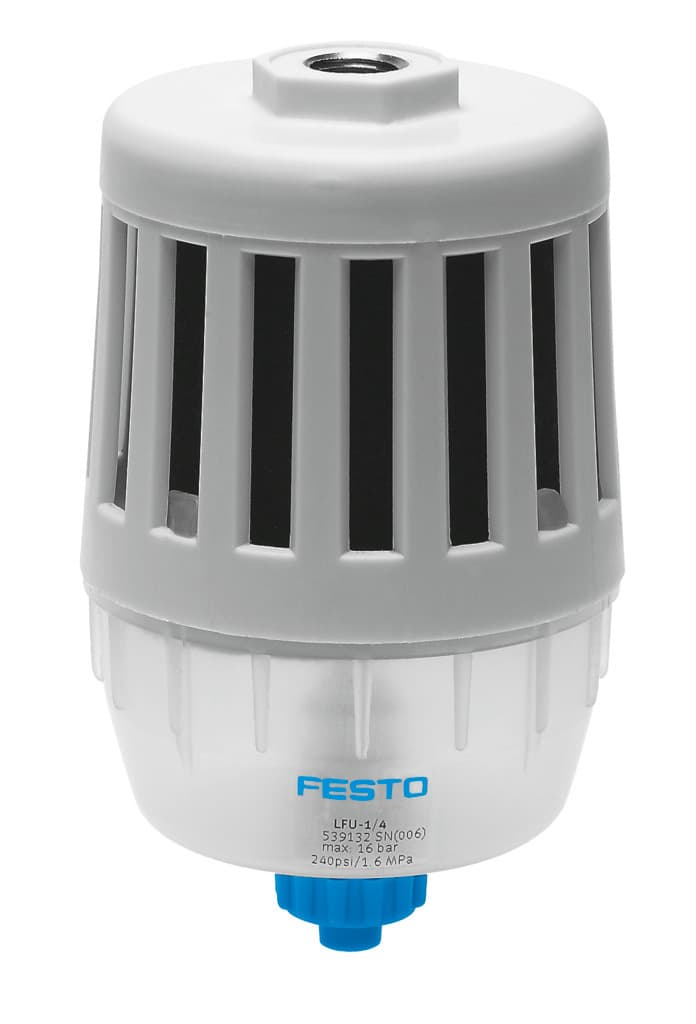

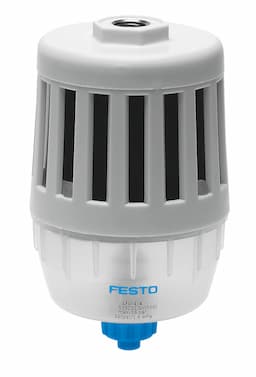

Product Model
lfu-1/4
Selling Points
- 1The LFU-1/4 filter silencer features a 1 μm filtration grade, ensuring up to 99.99% removal of oil and other contaminants from the exhaust air.
- 2This product significantly reduces exhaust noise by 40 dB, creating a quieter working environment.
- 3The manual condensate drain allows for easy collection and disposal of condensate, ensuring minimal downtime.
- 4The filter silencer can be mounted vertically with a ±5° angle, providing flexibility in installation.
- 5The LFU-1/4 conforms to ISO 8573-1:2010 and ISO 228-1 standards, ensuring compatibility with various pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | G1/4 | Mounting position | Vertical +/- 5° |
Grade of filtration | 1μm | Condensate drain | Manually rotating |
Symbol | 00991531 | Operating pressure | 0psi 232psi |
Flow rate with respect to atmosphere | 4000l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Noise reduction | Reduction by 40 dB |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Noise level | 78dB(A) | Ambient temperature | -10°C 60°C |
Product weight | 190g | Pneumatic connection | G1/4 |
Housing material | PP | Manufacturer ID | 539132 |
Specifications may be subject to change without notice
