Product Model

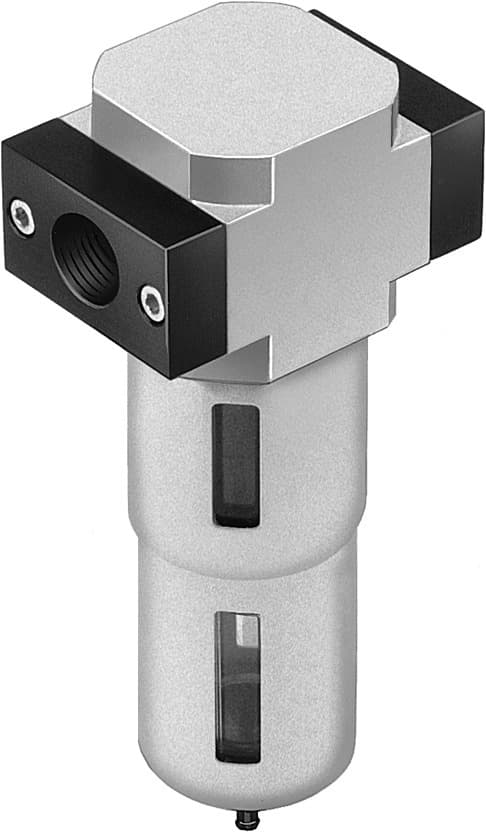

lfx-1/4-d-midi
Selling Points
- 1The Festo LFX-1/4-D-MIDI activated carbon filters are designed to remove gaseous oil components from compressed air, ensuring high-efficiency air purification and maintaining clean air quality.
- 2These filters are specifically designed for use with compressed air systems, adhering to ISO 8573-1:2010 standards for air quality.
- 3Equipped with activated carbon, these filters effectively capture and remove gaseous oil components, enhancing the overall cleanliness of the compressed air.
- 4Available in various sizes, including mini, midi, and maxi configurations, the LFX-1/4-D-MIDI filters offer flexible installation options to suit different pneumatic system requirements.
- 5Designed for reliable performance, these filters are recommended for use in applications where high air purity is critical, ensuring consistent operation and minimal downtime.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Midi | Series | D |
Mounting position | Vertical +/- 5° | Structural design | Active carbon filter Fiber filter |
Bowl guard | Metal bowl guard | Symbol | 00991519 |
Operating pressure | 0psi 232psi | Recommended maximum standard flow | 900l/min |
Max. standard flow rate for air quality class | 900l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [1:4:2] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:4:1] Inert gas |
Temperature of medium | 5°C 30°C | Residual oil content | 0.003mg/m3 |
Ambient temperature | -10°C 60°C | Product weight | 816g |
Type of mounting | Optionally: Line installation With mounting bracket | Pneumatic connection | G1/4 |
Pneumatic connection 1 | Sub-base G1/4 | Pneumatic connection 2 | Sub-base G? |
Note on materials | RoHS-compliant | Compressed air filter material | Activated carbon Fabric |
Housing material | Die-cast zinc | Material of bowl | PC |
Manufacturer ID | 532781 |
Specifications may be subject to change without notice
